Product code: AO-A5G-FPCG152
Producer: SECTRON

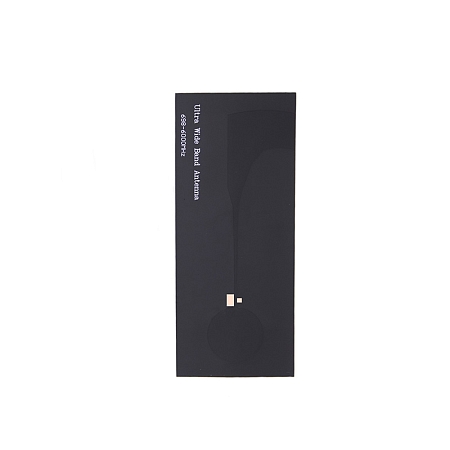

Antenna 5G Internal FLEX G152, 698-6000 MHz, 5 dBi, IPEX MHF, 1.37mm Coaxial Cable/100mm, 3M

Product code: AO-A5G-FPCG152
Producer: SECTRON

Antenna 5G Internal FLEX G152, 698-6000 MHz, 5 dBi, IPEX MHF, 1.37mm Coaxial Cable/100mm, 3M

Omnidirectional internal adhesive antenna designed for receiving / transmitting 5G signal reception. The antenna operates in the bands 700 - 6000 MHz.

12.97incl. VAT (21%) / pc

excl. VAT 10.72 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional internal adhesive 5G antenna

Omnidirectional internal adhesive antenna designed for receiving/transmitting 5G signal reception. The antenna operates in the bands 700 - 6000 MHz. It is adjusted and ready for the upcoming ' >5G technology. It is suitable for use in the field of M2M as well as in IoT devices and IoT systems for connection with development modules that are equipped with IPEX connectors. It comes with 3M sticker for easy assembly.

Cable specifications RF 1.37:

The RF 1.37 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments.

Connector specifications IPEX MHF:

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RF 1.37
Connector IPEX-MHF(f) R/A Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -40 ~ +85  °C Dimensions 120 x 50 x 0.2  mm
Directivity Omnidirectional Technology 5G
Weight 3.8  g Gain 5  dBi
VSWR <5.0:1 Radiation angle H 360 V 30
Type of attachment Adhesive Certification RoHS

12.97incl. VAT (21%) / pc

excl. VAT 10.72 € / pc
