Product code: AO-AKOM-30SS
Producer: SECTRON

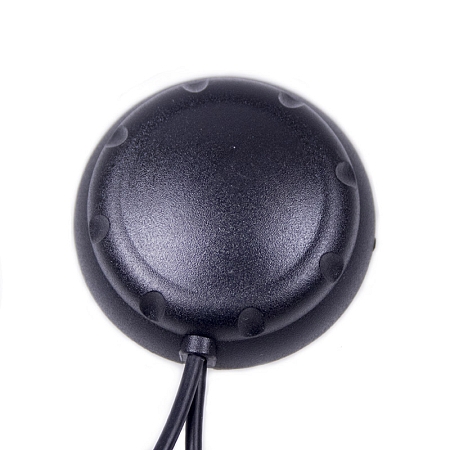

Antenna GSM/GPS Adhesive PUK, 2x SMA(m), 2x RG174/5m

Product code: AO-AKOM-30SS
Producer: SECTRON

Antenna GSM/GPS Adhesive PUK, 2x SMA(m), 2x RG174/5m

Omnidirectional antenna, designed for signal reception in GSM / GPS technologies. The antenna operates in bands 900/1800/1575.42 MHz.

28.24incl. VAT (21%) / pc

excl. VAT 23.34 € / pc

Temporarily unavailable
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional combined adhesive GSM and GPS antenna

Combination of directional and omnidirectional antennas, designed for signal reception in GSM/GPS technologies. The antenna operates in bands 900/1800/1575.42 MHz. In combination with an amplifier, this active antenna achieves a gain of up to 30 dBi in GPS band. It is suitable for use in cars and other vehicles. Comes with 3M double-sided tape for easy mounting on glass or plastic. The antenna is supplied with two 5m cables and two SMA(m) connectors.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.


Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector SMA(m) Maximum input power 10  W
Polarization Linear , R.H.C.P. Execuion External
Operating temperature -30 ~ +90  °C Dimensions 50.4 x 17  mm
Directivity Omnidirectional Bandwidth 10  MHz
Technology GSM , GPS Weight 134.81  g
Gain 0  dBi , 30  dBi VSWR <2.0:1 , <1.8:1
Radiation angle H 360 V 30 Type of attachment Adhesive
