Product code: AO-AGSM-MG5S
EAN: 0745114360250
Producer: SECTRON

Antenna GSM/UMTS Magnet Mount 50, 5 dBi, SMA(m), RG174/3m

Product code: AO-AGSM-MG5S
EAN: 0745114360250
Producer: SECTRON

Antenna GSM/UMTS Magnet Mount 50, 5 dBi, SMA(m), RG174/3m

Omnidirectional antenna is suitable as receiver of signal in GSM/UMTS. The antenna operates in bands 800/900/1800/1900/2100 MHz.

6.09incl. VAT (21%) / pc

excl. VAT 5.03 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

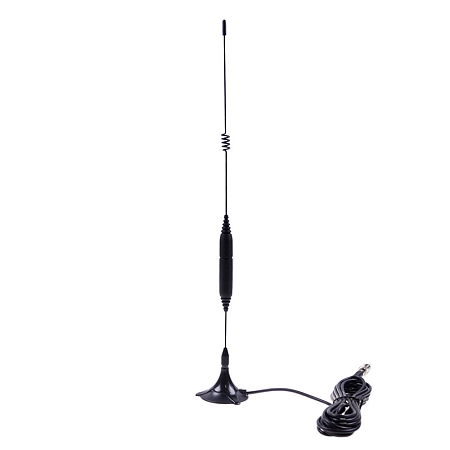

Omnidirectional GSM/UMTS antenna

The omnidirectional antenna with a built-in magnet for placement on any metal surface is intended for receiving/ transmitting  GSM technologies. The antenna operates in bands 800/900/1800/1900/2100 MHz. Is suitable for placement on a metal surface and is used for connection to modems and routers
The antenna is supplied with a 3 m long RG174 / U cable, which is terminated with connector SMA (m).

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.



More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +90  °C Dimensions 39.6 x 301.5  mm
Directivity Omnidirectional Technology GSM
Weight 57  g Gain 5  dBi
VSWR <1.8:1 Radiation angle H 360 V 30
Type of attachment Magnetic

6.09incl. VAT (21%) / pc

excl. VAT 5.03 € / pc
