Product code: AO-ALTE-G124M
Producer: SECTRON

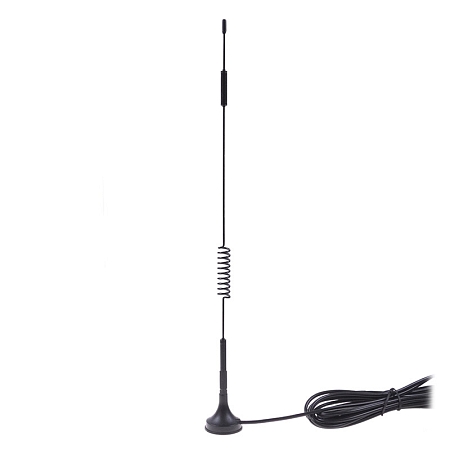

Antenna LTE Magnet Mount 124, 6 dBi, MCX(m)90°, RG174/3m

Product code: AO-ALTE-G124M
Producer: SECTRON

Antenna LTE Magnet Mount 124, 6 dBi, MCX(m)90°, RG174/3m

Omnidirectional magnetic antenna suitable as receiver/transmitter of signal in GSM/UMTS/LTE and operates in bands 700/800/900/1700/1800/1900/2100/2600 MHz.

16.77incl. VAT (21%) / pc

excl. VAT 13.86 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Antenna LTE magnetic

Omnidirectional magnetic antenna suitable as receiver/transmitter of signal in GSM/UMTS/LTE and operates in bands 700/800/900/1700/1800/1900/2100/2600 MHz. It is suited for modems/routers. The antenna has a magnetic base and  is designed for placement on a metal surface. It is supplied with 3 m cable with MCX(m)90° connector.

Connector specifications MCX(m)90°:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector MCX(m) R/A Polarization Linear
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 315 x 29.5  mm Directivity Omnidirectional
Technology UMTS , LTE , GSM Weight 55.99  g
Gain 6  dBi VSWR <2.0:1
Type of attachment Magnetic
