Product code: AP-AGNSS-A228B
Producer: SECTRON

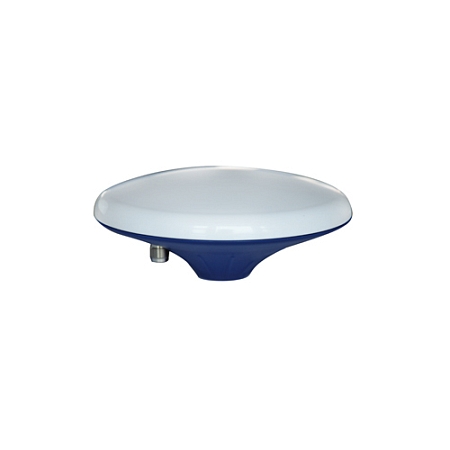

Antenna GNSS Screw Mount L1/L2 228B, TNC-K

Product code: AP-AGNSS-A228B
Producer: SECTRON

Antenna GNSS Screw Mount L1/L2 228B, TNC-K

Directional GNSS antenna operates in the frequency range 1176.45‐1575.42 / 1201‐605.375 / 1268.52‐1589.742 MHz. It supports a range of GNSS technologies.

290.76incl. VAT (21%) / pc

excl. VAT 240.30 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Directional GNSS antenna

Directional GNSS antenna with 5 dBi gain operates in the frequency range 1176.45‐1575.42 / 1201‐605.375 / 1268.52‐1589.742 MHz. It supports a range of GNSS technologies such as GPS / GLONASS / COMPASS / Galileo and even supports the L5 GPS band. The antenna is equipped with a TNC connector. The robust housing and degree of protection IP67 ensure high performance even in the most demanding working conditions.  This GNSS navigation antenna is well-suited to high-precision surveying and mapping applications in industries like geodesy and Vehicle Tracking. The antenna in combination with the amplifier achieves a high overall gain of up to 40 dB.

Specifications connector TNC:

TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector TNC(f)
Maximum input power 10  W Power voltage 3.0 V - 12 V DC
Polarization R.H.C.P. Execuion External
Operating temperature -40 ~ +85  °C Dimensions 100.5 x 53.5  mm
Directivity Directional Technology COMPASS , Galileo , GPS , GLONASS
Gain 5  dBi VSWR <1.5:1
LNA Gain 40  dB Type of attachment Connector mount
Certification RoHS Ingress protection (IP) IP67
Material ABS
