Product code: AO-ALTE-OM58
Producer: SECTRON

Antenna LTE OMNI OM58, 690-2600 MHz, 5 dBi, SMA(m), Cable .195/3m

Product code: AO-ALTE-OM58
Producer: SECTRON

Antenna LTE OMNI OM58, 690-2600 MHz, 5 dBi, SMA(m), Cable .195/3m

This antenna is suitable for Helium wireless networks. Omnidirectional multi-band antenna for GSM/UMTS/LTE technologies. The antenna operates in frequency bands 700/800/850/900/1700/1800/1900/2100/2300/2500/2600 MHz.

33.02incl. VAT (21%) / pc

excl. VAT 27.29 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional multi-band antenna for GSM/UMTS/LTE

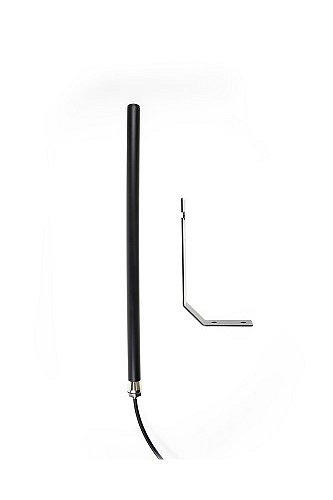

Omnidirectional multi-band antenna for GSM/UMTS/LTE technologies. The antenna operates in frequency bands 700/800/850/900/1700/1800/1900/2100/2300/2500/2600 MHz.Thanks to its precise construction, this antenna has an excellent weather resistance which makes it suitable for outdoor installations. The antenna is supplied with a 3 m long .195 cable, which is terminated with an SMA (m) connector. The package includes a holder that ensures a firm and stable attachment of the antenna.

This antenna is suitable for Helium wireless networks, you can find out more in our article.

Cable specifications .195:

The .195 coaxial cable is compatible with connectors applicable to cables with 4.95 mm outer diameter. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω. The most common cables of this type have a temperature range of -40 °C to + 85 °C. The shortening factor is set at 0.79. The .195 cable is used in metrology, wireless communications, the automotive industry and also for VHF and UHF applications. It is also often used for creating cable adaptors with plug connectors such as BNC/N/SMA/TNC. There are also specially modified types of .195 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel .195
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -40 ~ +60  °C Dimensions 20 x 269  mm
Directivity Omnidirectional Technology GSM , UMTS , LTE
Gain 5.2  dBi VSWR <2.0:1
Radiation angle H 360 V 30 Type of attachment Screw Mount
Ingress protection (IP) IP67

33.02incl. VAT (21%) / pc

excl. VAT 27.29 € / pc
