Product code: AW-A24G-W401-2S
Producer: SECTRON

Antenna WiFi Connector Mount W401-2, WiFi, Bluetooth, ZigBee, 2.4 GHz, 3 dBi, SMA(m)

Product code: AW-A24G-W401-2S
Producer: SECTRON

Antenna WiFi Connector Mount W401-2, WiFi, Bluetooth, ZigBee, 2.4 GHz, 3 dBi, SMA(m)

Omnidirectional interior antenna is designed to receive WiFi/Bluetooth/ZigBee signal.

3.92incl. VAT (21%) / pc

excl. VAT 3.24 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

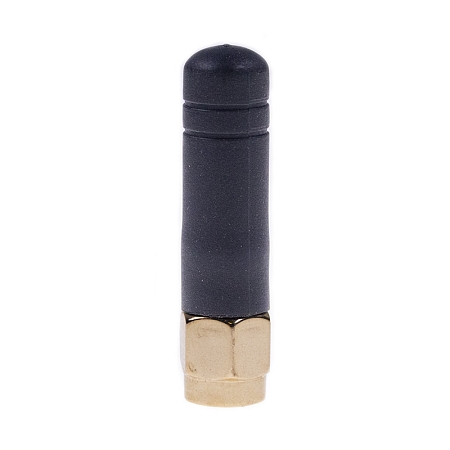

Omnidirectional interior WiFi antenna

The omnidirectional WiFi antenna is designed for signal reception in WiFi, Bluetooth and ZigBee technologies. It works in the 2.4 GHz band and is suitable for strengthening the signal in homes or smaller offices. This antenna is easily attached to a WiFi router or other wireless device using a screw connector. The 30 mm long antenna is terminated with an SMA (m) connector.

Specification connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector SMA(m)
Maximum input power 10  W Polarization Linear
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 9 x 30    mm Directivity Omnidirectional
Technology Bluetooth , , Weight 3.46  g
Gain 3  dBi VSWR <1.49:1
Type of attachment Connector mount Certification RoHS
Material ABS

3.92incl. VAT (21%) / pc

excl. VAT 3.24 € / pc
