BGS5 GPRS Java Terminal USB and RS232

Sale
Product code: GM-BGS5TU
EAN: 0745114360090
Producer: SECTRON

BGS5 GPRS Java Terminal USB and RS232

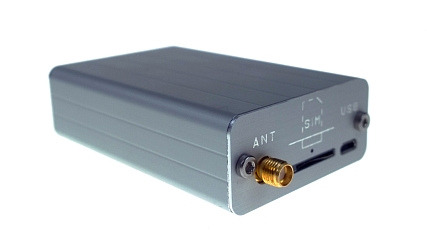

Modem in industrial metal aluminum case which is suitable for installation into a control cabinet.

70.06 € incl. VAT

48.88incl. VAT (21%) / pc

excl. VAT 40.40 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

BGS5 GPRS Java Terminal USB

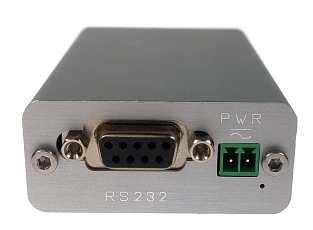

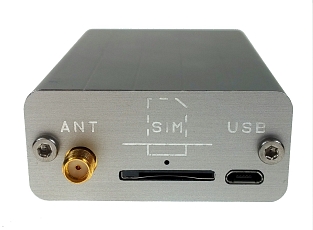

GSM modem in industrial metal aluminium case which is suitable for installation into a control cabinet. The modem has serial port RS232 with adjustable watchdog. The modem is equipped with a GSM module Cinterion BGS5. The modem can be powered directly from the USB cable. Not need to power via power adaptor from 230 V socket.
The GSM modem is suitable for fast implementation in devices that require remote communication. It also includes the monitoring of communication with the master device ( watchdog ) via RS232 serial port.

The modem has JAVA OPEN PLATFORM in which you can write your own program, for example a program for downloading and sending data from connected technology.

Features:

Frequency bands - GSM 850/900/1800/1900 MHz
• Communication speed - (kbps) 85.6 / 42.8
• User interface - RS-232, USB
• Operating temperature range – 30°C to + 65°C
• Storage temperature range – 40°C to + 85°C
• Supply voltage 8-30 V AC / DC, USB

SECTRON recommends to buy the following accessories:
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m, w/o connector, open end
AO-MRT-2B - Terminal block Connector 2pin
AO-AGSM-SMVS - Antenna GSM Stick 180°, Dual-band, 2dBi, SMA(m)
AO-AGSM-SMVS1 - Antenna GSM Stick 180°, 2dBi, SMA(m)
AO-AUMTS-G402S - Antenna UMTS/GSM 402, Stick 90°/180°, 2 dBi, SMA(m)

More information can be found in the attached datasheet.

Parameters

Dimensions 82 x 54 x 24  mm Power connector RJ12
Power supply 8 – 30 V Exension Java programmable
