Product code: AO-CFT-05
Producer: SECTRON

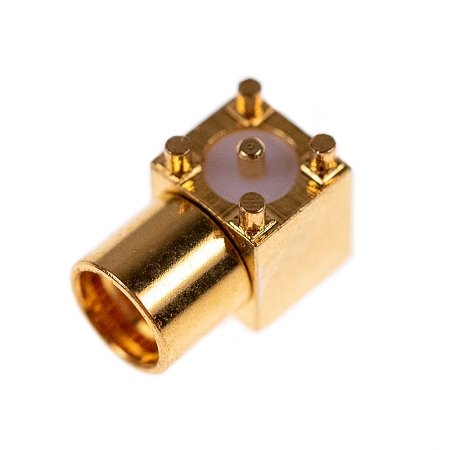

Connector MMCX(f) R/A 5, THD

Product code: AO-CFT-05
Producer: SECTRON

Connector MMCX(f) R/A 5, THD

The MMCX (f) R/A coaxial connector is attached to a specific panel using the THD method.

2.77incl. VAT (21%) / pc

excl. VAT 2.29 € / pc

Price from 10 pieces 1.71 €

Price from 100 pieces 1.43 €

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Connector MMCX (f) R/A 5, THD

These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. Operating temperature range -65 °C to + 165 °C. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

The MMCX (f) R/A coaxial connector is attached to a specific panel using the THD method.

Material and finish:

• Body: brass / gold over nickel
• Socket contact: beryllium copper / nickel with 0.13 μm gold
• Insulator 1: PTFE / -
• Insulator 2: PTFE / -

Parameters:

• Type: Female (f)
•* Impedance*: 50 Ω
• Maximum frequency: 0-6 GHz
• Insulation resistance: 500 MΩ
• Center contact resistance: 5 mΩ
• Outer contact resistance: 1 mΩ
• Mating cycles: 100
• Operating temperature: - 65 °C to + 165 °C

Technical parameters can be found in the attached datasheet or contact our sales department.

Parameters

2.77incl. VAT (21%) / pc

excl. VAT 2.29 € / pc
