Product code: WM-453-00085R

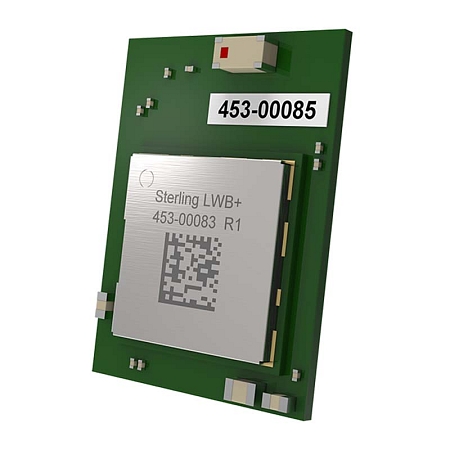

LWB+ Module with integrated antenna

Product code: WM-453-00085R

LWB+ Module with integrated antenna

Ezurio’s new Sterling™-LWB+ Wi-Fi 4 with Bluetooth 5.2 module, based upon the Infineon AIROC™ CYW43439 chipset, is the latest member of the successful Sterling-LWB radio family.

14.40incl. VAT (21%) / pc

excl. VAT 11.90 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

LWB+ Module with integrated antenna

(Laird changed name to Ezurio)

Ezurio’s new Sterling™-LWB+ Wi-Fi 4 with Bluetooth 5.2 module, based upon the Infineon AIROC™ CYW43439 chipset, is the latest member of the successful Sterling-LWB radio family. This embedded module series is available as a System-in-Package (SIP) and two certified module versions, supporting either an on-board chip antenna or a MHF connector for an external antenna. It is designed to meet the demands of medical and industrial IoT connectivity, and is mechanically and pin compatible with our Sterling-LWB module as an upgrade path for existing customers.

The Sterling-LWB+ contains a fully featured Wi-Fi 4 radio, enabled with our industry-leading software drivers and support. The secure, high performance SDIO solution provides easy integration with any Linux or Android based system. It is designed for IoT from the start: fully certified, easy to integrate, and is the fastest route to the market for wireless IoT applications.

This fully certified WM-453-00085R module is equipped with an integrated antenna in the form of a chip.

Features:

• Easy integration
• Compatibility with Linux Backports
• High-quality drivers and extended product life
• Protocol support: 802.11b / g / n Wi-Fi and Dual-Mode Bluetooth
• Support for security standards WPA3
• Operating temperature -40 to +85 °C

Technical parameters can be found in the attached datasheet.

Parameters

Operating temperature -40 ~ +85  °C Dimensions 21 x 15.5 x 4  mm
Technology Bluetooth , Certification FCC/ISED/CE/MIC/RCM
Power supply 3.3 Drivers Linux ,

14.40incl. VAT (21%) / pc

excl. VAT 11.90 € / pc
