Product code: AM-68-IS10S
Producer: SECTRON

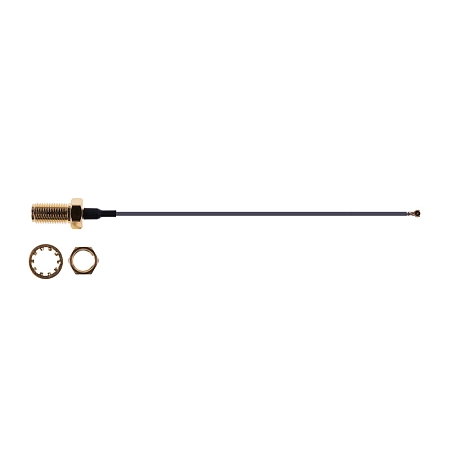

RF cable adaptor IPEX MHF4L(f) to SMA(f) Panel H8, 1.13mm Coaxial Cable, 10cm

Product code: AM-68-IS10S
Producer: SECTRON

RF cable adaptor IPEX MHF4L(f) to SMA(f) Panel H8, 1.13mm Coaxial Cable, 10cm

RF cable adaptor (pigtail) series IPEX MHF4L(f)–SMA (f) H8, cable series LP-068, the length of the cable is 10 cm and its diameter is 1.13 mm.

4.51incl. VAT (21%) / pc

excl. VAT 3.73 € / pc

Price from 10 pieces 3.39 €

Price from 100 pieces 3.05 €

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

RF cable adaptor (pigtail) IPEX MHF4L(f) to SMA (f) H8, cable LP-068, length 100 mm

Features:

IPEX MHF4L(f)  - SMA(f) H8 adaptor (pigtail) with LP-068 series cable, 10 cm cable length and 1.13 mm diameter.
The adaptor is designed for the frequency range of the IPEX MHF4L 0-9 GHz / SMA 0-18 GHz connector. Connecting and detaching the IPEX MHF and SMA connectors is easy, guarantee of 30 cycles due to the small size and strength of the IPEX MHF connector. The SMA connector has a guarantee up to 500 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.

Parameters:

• Cable type LP-068: diameter 1.13 mm
Connector A: SMA(f) H8
Connector B: IPEX MHF
• Certification: RoHS
• Weight: 3.77 g

• Frequency range: Up to 6 GHz
•* Impedance*: 50 ± 2 Ohm
• MAX. VSWR: <1.4:1 / 6 GHz
• Maximum insertion loss: -0.73 dB / 3GHz
• Maximum operating voltage: 200 V AC / 1 min
• Operating temperature: -40 °C to +90°C

Connector A - Connector IPEX MHF

Use:

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.

Benefits:

• High reliability due to precise processing
• Low insertion loss
• Low VSWR
• Miniature dimensions
• High frequency range

Parameters:

• Frequency range: Up to 9 GHz
•* Impedance*: 50 ± 2 Ohm
• 500 Ohm insulation resistance
• Max. VSWR
• Maximum operating voltage: 200 V AC / 1 min
• Guaranteed number of connections: 30 cycles
• Operating temperature: -40 °C do +90 °C
• Weight:

Connector B - Connector SMA

Use:

These are high-frequency connectors with screw connection mechanisms. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Benefits:

• Low insertion loss
• Low VSWR
• High frequency range
• Fully gold

Properties:

• Frequency range: Up to 18 GHz
•* Impedance*: 50 Ohm
• Max. VSWR: <1.5:1
• Guaranteed number of SMA connections : 500 (only applies to berilium center contact)
• Maximum operating voltage: 500 V AC / 1 min
• Operating temperature: -55 °C do +155 °C
• Certification: RoHS

Coaxial cable LP 088

Cable features:

The LP 068 coaxial cable is compatible with connectors that are applicable to a 1.13 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.

Parameters

Cable length 100  m Impedance 50  Ohm
Operating temperature -40 ~ +90  °C Weight 3.77 g  g
Maximum VSWR <1.4:1 Maximum insertion loss -0.73  dB
Frequency range 6  MHz Operating voltage 60 V rms  V
