RF cable adaptor U.FL(f) to TNC(f)bulkhead, LP-088 10cm

Product code: AM-88-UT10A
Producer: SECTRON

RF cable adaptor U.FL(f) to TNC(f)bulkhead, LP-088 10cm

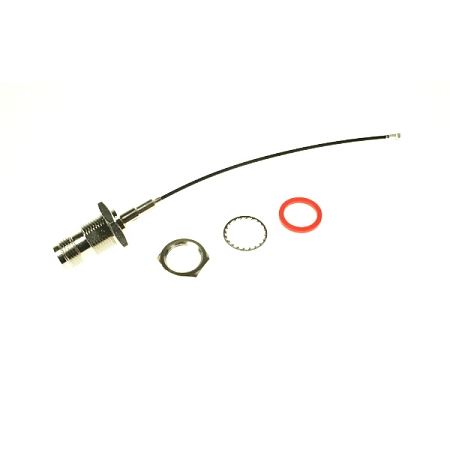

RF cable adaptor U.FL(f) to TNC(f)bulkhead, LP-088, cable length 10cm

7.60incl. VAT (21%) / pc

excl. VAT 6.28 € / pc

Price from 10 pieces 5.71 €

Price from 100 pieces 5.13 €

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

RF cable adaptor U.FL (f) to TNC (f) bulkhead, LP-088, cable length 10 cm

Features:

U.FL (f) adaptor (pigtail) - TNC (f) bulkhead with LP-088 series cable, 10 cm cable length and 1.37 mm diameter.
The adaptor is designed for the frequency range of the U.FL 0-6 GHz / TNC 0-11 GHz connector. Connecting and detaching the U.FL and TNC connectors is easy, guarantee of 30 cycles due to the small size and strength of the U.FL connector. The TNC connector has a guarantee up to 500 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.

Parameters:

• Cable type LP-088: diameter 1.37 mm
• Cable length: 10 cm
Connector A: U.FL (f)
Connector B: TNC (f) bulkhead
• Certification: RoHS

Connector A - Connector U.FL

Use:

U.FL connectors are used in applications where there is very little space for connecting / interconnecting RF components.
Gold-plated center contact U.FL connector improves its properties.

Benefits:

• Low insertion loss
• Low VSWR
• Miniature dimensions
• Gold-plated center contact

Parameters:

 • Frequency range: Up to 6 GHz
 •* Impedance*: 50 ± 2 Ohm
 • 500 Ohm insulation resistance
 • MAX. VSWR <1.4: 1 (0-6GHz)
 • Maximum operating voltage: 200 V AC / 1 min
 • Guaranteed number of connections: 30 cycles
 • Operating temperature: -40 °C do +90 °C
 • Weight: 72 mg

Connector B - Connector TNC

Use:

TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.

Properties:

• *Impedance *50 Ohm
VSWR <1.3:1
• Max. Insertion loss:
• Provozní teplota –65˚C + 155˚C
• Frekvenční rozsah 0-11 GHz

Coaxial cable LP 088

Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
