Product code: AM-45-KAUU05
Producer: Hirose

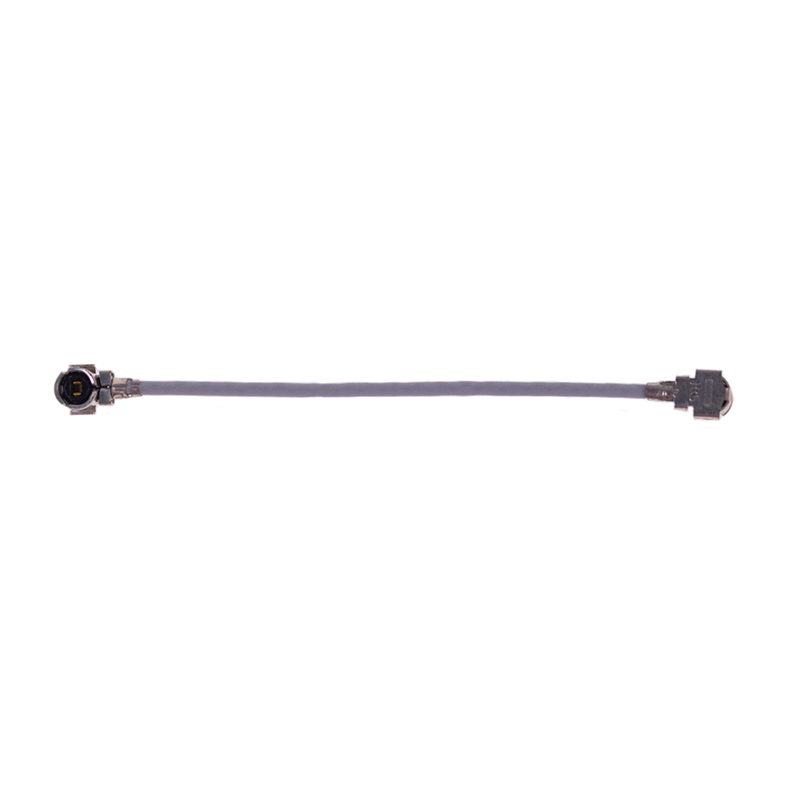

RF cable adaptor U.FL(f) to U.FL(f), LP-040, 5cm, same orientation

Sale
Product code: AM-45-KAUU05
Producer: Hirose

RF cable adaptor U.FL(f) to U.FL(f), LP-040, 5cm, same orientation

RF cable adaptor (pigtail) from U.FL (f) to U.FL (f), with cable series LP-040, cable length is 5 cm.

1.20incl. VAT (21%) / pc

excl. VAT 0.99 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

RF cable adaptor (pigtail cabel) from U.FL(f) to U.FL(f)

Features:

U.FL (f) miniature RF cable adaptor with LP-040 series cable, 5 cm cable length and 0.81 mm diameter. The adaptor is designed for the 0-6 GHz frequency range and achieves very low VSWR values, less than 1.35: 1 over the entire frequency range. Connecting and disconnecting U.FL connectors is easy. Due to the very small size and strength of the connector, we are guaranteeing 30 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting for example 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.

Connector A + B

Use:

U.FL connectors are used in applications where there is very little space for connecting / interconnecting RF components.

Benefits:

• High reliability due to precise manufacturing
• Low insertion loss
• Low VSWR
• Miniature dimensions

Parameters:

• Frequency range: Up to 6 GHz
• *Impedance *50 ± 2 Ohm
• 500 Ohm insulation resistance
• MAX. VSWR <1.35: 1 (0-6GHz)
• Nominal attenuation 5.4 dB / m (3 GHz) / 8 dB / m (6 GHz)
• Guaranteed number of connections 30 cycles
• Maximum operating voltage 200 V AC / 1 min
• Operating temperature -40 ° C to +90 ° C

Coaxial cable LP 040

Cable features:

The LP 040 coaxial cable is compatible with connectors that are applicable to a 0.81 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.

More information can be found in the attached datasheet.

Parameters

Cable length 50  m Maximum VSWR <1.35:1
Nominal attenuation 5.4 dB/m (3 GHz) / 8 dB/m (6 GHz)  dB/m
