Product code: GM-EHS5-E-R4.1
Producer: Telit Cinterion
Product code: L30960-N2800-A401

Telit Cinterion EHS5-E Rel.4.01

Product code: GM-EHS5-E-R4.1
Producer: Telit Cinterion
Product code: L30960-N2800-A401

Telit Cinterion EHS5-E Rel.4.01

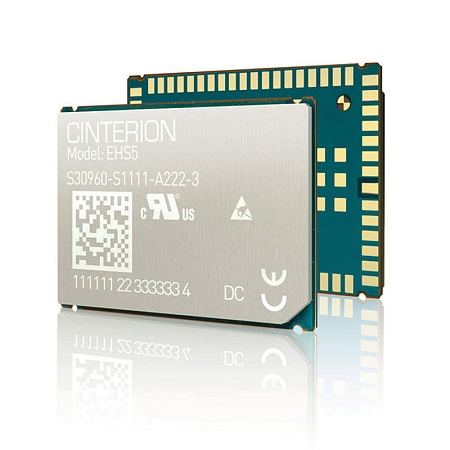

Telit Cinterion EHS5-E Rel.4.01 is a high-performance, open-platform module powered by the JavaTM virtual machine.

48.40incl. VAT (21%) / pc

excl. VAT 40.00 € / pc

Temporarily unavailable
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Telit Cinterion EHS5-E Rel.4.01

Telit Cinterion EHS5-E Rel.4.01 is a high-performance, open-platform module powered by the JavaTM virtual machine. It combines the advantages of easy and reliable automated manufacturing with fast design and development of customer´s application. EHS5 delivers highly efficient 3G connectivity in an ultra-compact footprint featuring high-speed data communication with 7.2 Mbps (max) in the downlink and 5.76 Mbps (max) uplink.

Cinterion EHS5-E Rel.4.01 (900/2100 MHz) is available for Europe.

Features:

• Dual Band UMTS (WCDMA / FDD)
• EEC5-E: 900/2100 MHz
• EEC5-US: 850/1900 MHz
• Dual Band GSM
• EEC5-E: 900/1800 MHz
• EEC5-US: 850/1900 MHz
• HSDPA Cat.8 / HSUPA Cat.6, DL: max. 7.2 Mbps, UL: max. 5.76 Mbps
• EDGE class 12, DL: maximum 237 kbps, UL: maximum 237 kbps
• GPRS class 12, DL: max. 85.6 kbps, UL: max. 85.6 kbps
• Control with standard and extended AT commands
• Supply voltage: 3.3 to 4.5V
• Operating temperature: -40 °C to +90 °C
• Dimensions: 18.8 x 27.6 x 2.2 mm
• Weight: 2.7g

Vacuum-packaged modules. Modules pack of 10/50/300 units. MOQ is 10 units.

Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.

Technical parameters can be found in the attached datasheet.

Parameters

Dimensions 27.6 x 18.8 x 2.2  mm Technology 3G ,
Weight 2.7  g Power supply 3.1 – 4.5 V
Number of SIM cards 1x Exension Java programmable

48.40incl. VAT (21%) / pc

excl. VAT 40.00 € / pc
