Product code: AM-88-KAII22
Producer: SECTRON

RF cable adaptor IPEX MHF(f) to MHF(f), 1.37 mm Coaxial Cable, 22 cm

Sale
Product code: AM-88-KAII22
Producer: SECTRON

RF cable adaptor IPEX MHF(f) to MHF(f), 1.37 mm Coaxial Cable, 22 cm

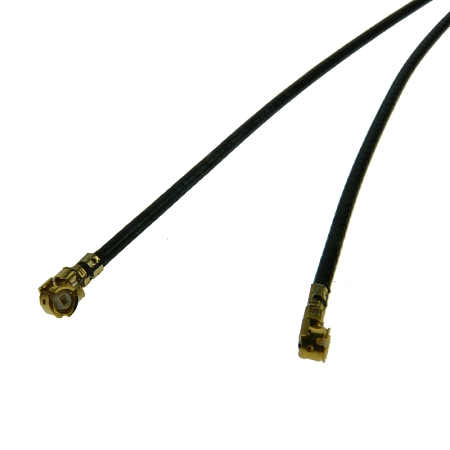

The adaptor (pigtail) IPEX MHF (f) to IPEX MHF (f) with LP-088 series cable, 22 cm cable length and 1.37 mm diameter.

1.57incl. VAT (21%) / pc

excl. VAT 1.30 € / pc

Price from 10 pieces 1.04 €

Price from 100 pieces 0.93 €

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

RF cable adaptor (pigtail) IPEX MHF(f) to MHF(f), cable LP-088

Features:

The RF adaptor (pigtail) IPEX MHF (f) to IPEX MHF (f) with LP-088 series cable, 22 cm cable length and 1.37 mm diameter.
The RF adaptor is designed for the frequency range of the IPEX MHF 0-9 GHz connector. Connecting and detaching the IPEX MHF connector is easy, guarantee of 30 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.

Parameters:

• Cable type LP-088: diameter 1.37 mm
• Cable length: 22 cm
Connector A: IPEX MHF(f)
Connector B: IPEX MHF(f)
• Certification: RoHS

Connector A,B - Connector IPEX MHF

Use:

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.

Benefits:

• High reliability due to precise processing
• Low insertion loss
• Low VSWR
• Miniature dimensions
• High frequency range

Properties:

• Frequency range: Up to 9 GHz
•* Impedance*: 50
• Max. VSWR: Female: <1.3: 1 (0.1-3 GHz) / <1.5: 1 (3-6 GHz) /1.9:1 (6-9 GHz)
                        Male: <1.3: 1 (0.1-3 GHz) / <1.4: 1 (3-6 GHz) 1.8: 1 (6-9 GHz)
• Guaranteed number of connections before deformation: 30
• Maximum operating voltage: 200 V AC / 1 min
• Operating temperature: -40 ° C to +90 ° C
• Certification: RoHS

Coaxial cable LP 088

Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
