Antenna GPS Embedded AP25, 16 dBi, U.FL(f) RA, 1.13mm Coaxial Cable/52mm, 35x35x4.49mm, active

Product code: AP-AP25-16U /Manufacturer: SECTRON

ap-ap25-16u-gps-antena-01 ap-ap25-16u-gps-antena-03 ap-ap25-16u-gps-antena-04 ap-ap25-16u-gps-antena-02

2.99 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

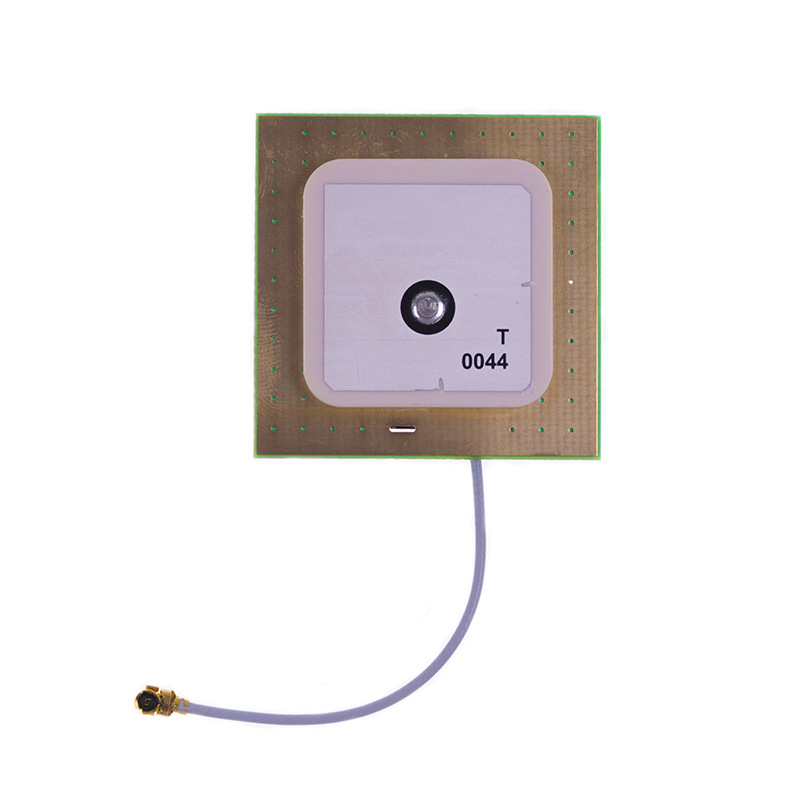

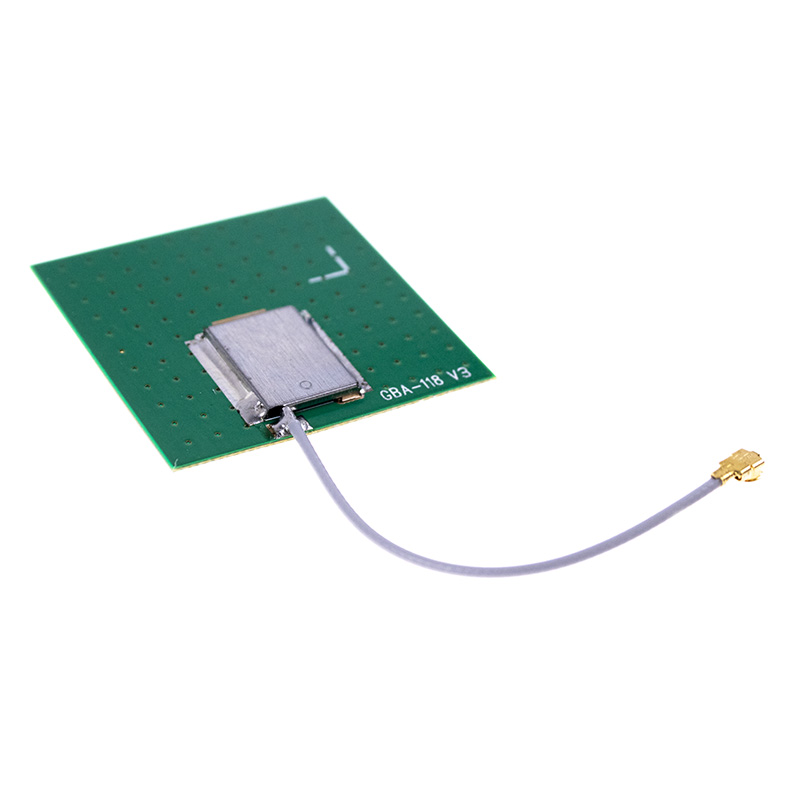

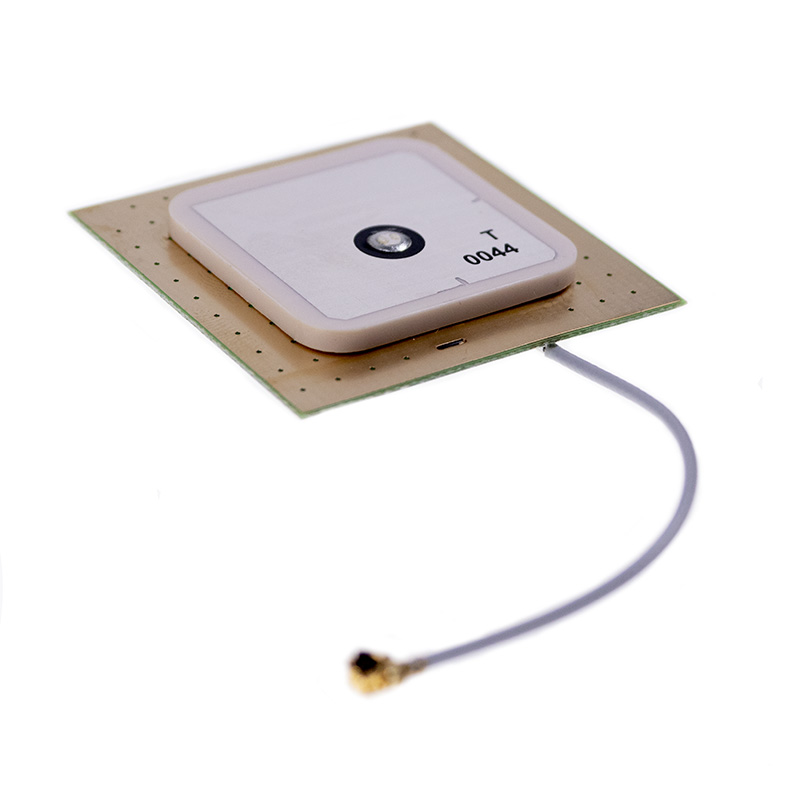

Omnidirectional GPS antenna

Omnidirectional GPS antenna. The antenna operates in band 1575.42 MHz. In combination with integrated amplifier, this active antenna achieves a gain of up to 16 dBi in GPS band. It is suitable for use in cars and other vehicles. A cable with a length of 52 mm is attached to the antenna, which is terminated with a U.FL (f) 90 ° connector.

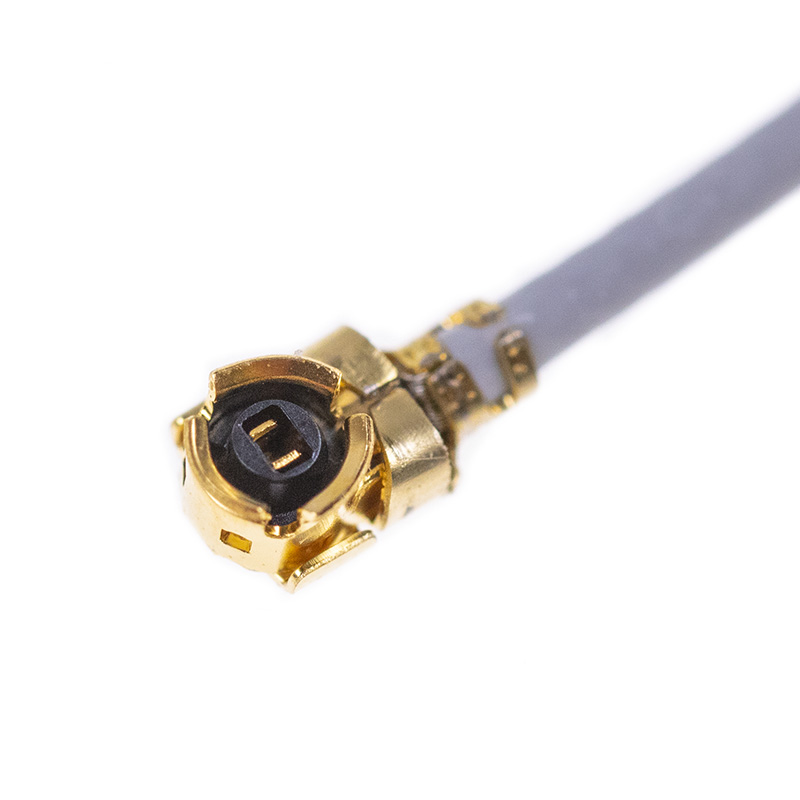

Connector specifications U.FL:

U.FL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the U.FL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.

Cable specifications RF 1.13:

The RF1.13 coaxial cable is compatible with connectors that are applicable to a 1.13 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices. There are also specially modified types of RF 1.13 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RF 1.13
Connector: U.FL(f) R/A Maximum input power: 10 W max.
Input voltage: 3 V DC Polarization: R.H.C.P.
Execution: Internal Operational temperature: -30 °C - +80 °C
Dimensions: 35 x 35 x 4.49 mm Directivity: Directional
Technology : GPS Weight: 7.15 g
VSWR: <2.0:1 Radiation angle: H 360° V 30°
GAIN: 16 dBi TYPE OF ATTACHMENT: Soldered
