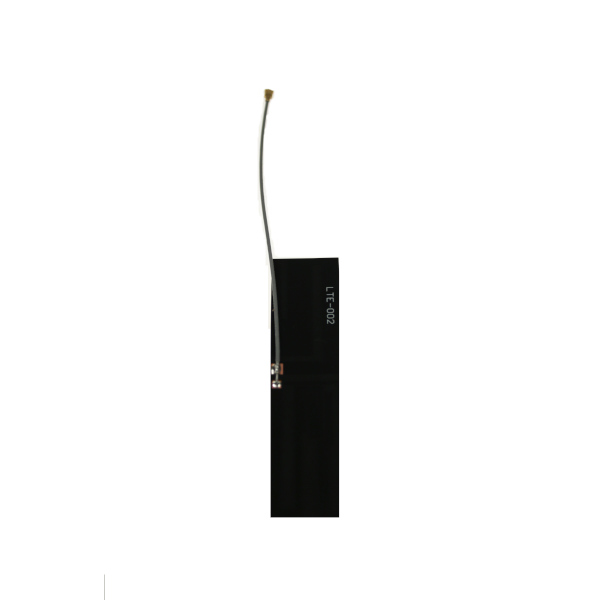

Antenna GSM/UMTS/LTE Flexible 002, 20x80 mm, MHF(f), Cable OD1.37 mm, 100 mm

Product code: AO-ALTE-FPC002I100 /Manufacturer: SECTRON

ao-alte-fpc002i100- ao-alte-fpc002-bezkabelu

4.31 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional LTE antenna

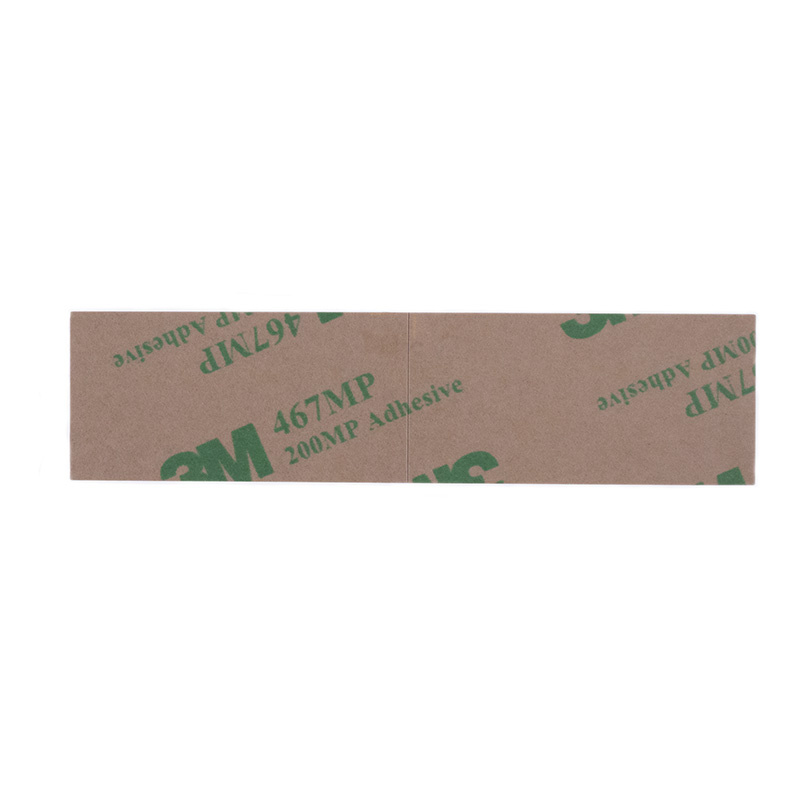

Omnidirectional antenna is suitable as receiver/transmitter of signal in GSM/UMTS/LTE. The antenna operates in bands 700/800/900/1700/1800/1900/2100/2600 MHz. It is suited for modems/routers and is supplied with 100mm cable with MHF (f) connector. Double-sided 3M tape ensures easy installation.

Specifications connector MHF:

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.

Cable specifications RF 1.37:

The RF 1.37 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RF 1.37
Connector: IPEX-MHF(f) R/A Maximum input power: 10 W max.
Polarization: Linear Execution: Internal
Operational temperature: -30 to +90 °C °C Dimensions: 20 x 80 x 0.1 mm
Directivity: Directional Technology : GSM / UMTS / LTE
Weight: 1.4 g VSWR: <2.0:1
Radiation angle: H 360° V 11° GAIN: 0 dBi
TYPE OF ATTACHMENT: Adhesive
