Antenna LTE Adhesive G017L, 2 dBi, FME(f), RG174/3m

Product code: AO-ALTE-G017LF /Manufacturer: SECTRON

ao-alte-g017m040-lte-antena-02 ao-alte-g017m040-lte-antena-03

3.64 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

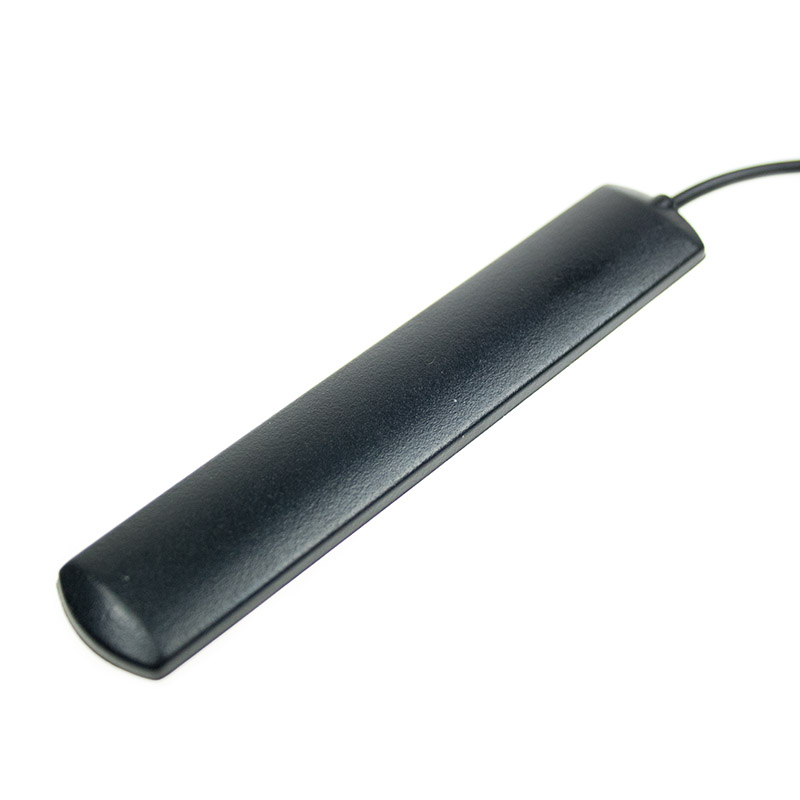

Omnidirectional adhesive GSM/UMTS/LTE antenna

Omnidirectional adhesive antenna for GSM/UMTS/LTE technologies operates in bands 700/800/900/1800/1900/2100/2600 MHz. It is suited for cellular modems/routers. The antenna is supplied with 3m RG174/U cable with FME (f) connector. It comes with 3M sticker for easy assembly.

Cable specifications RG174/U:

The cable labeled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc.

Connector specifications FME:

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Temperature range is -65 °C to +155 °C. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: FME(f) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 115.6 x 21.7 x 5.8 mm
Directivity: Omni-directional Technology : GSM / UMTS / LTE
Weight: 54.16 g VSWR: < 2.0:1
GAIN: 2.08 dBi TYPE OF ATTACHMENT: Adhesive

Documents for download

AO-ALTE-G017LS7.pdf (1648.533 kB)
