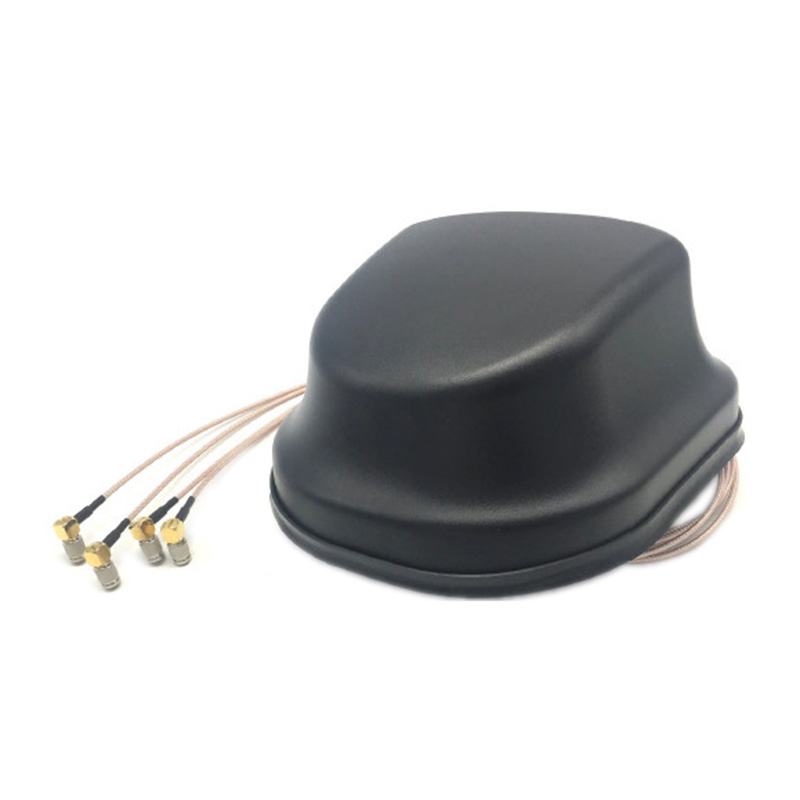

Antenna LTE MIMO Screw Mount G605LM4, 3.5 dBi, 4x SMA(m), 4x RG174/3m

Product code: AO-ALTE-G605LM4S /Manufacturer: SECTRON

ao-alte-g605lm4s

54.05 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Antenna LTE MIMO omnidirectional mounting

The antenna is a combination of 4 omnidirectional receivers, which are primarily suited for reception of GSM/UMTS/LTE technologies. Antennas operate in 700/800/900/1700/1800/1900/2100/2400/2600/2700 MHz bands. It is suitable for modems/routers. Using the so-called MIMO technology and suitable positioning of the antennas, the resulting system achieves higher transmission rates. The antenna can be used in M2M as well as in IoT devices and systems. The IP67 degree of protection makes it suitable for outdoor use. The antenna system is supplied with four 3 m RG174/U cables with SMA (m) connectors.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 189 x 182 x 85 mm
Directivity: Omni-directional Technology : GSM / UMTS / LTE
VSWR: <3.0:1 Radiation angle: H 360° V 30°
GAIN: 3.5 dBi TYPE OF ATTACHMENT: Screw Mount
