Trimble BD930-UHF

Product code: GP-BD930-UHF /Manufacturer: Trimble /Produktový kód: 91142-01

bd930-uhf-0

For verification price, please contact us sales@sectron.cz or call us. Domestic Business: +420 556 621 030, International Business.: +420 556 621 020

Price on request

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 12 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

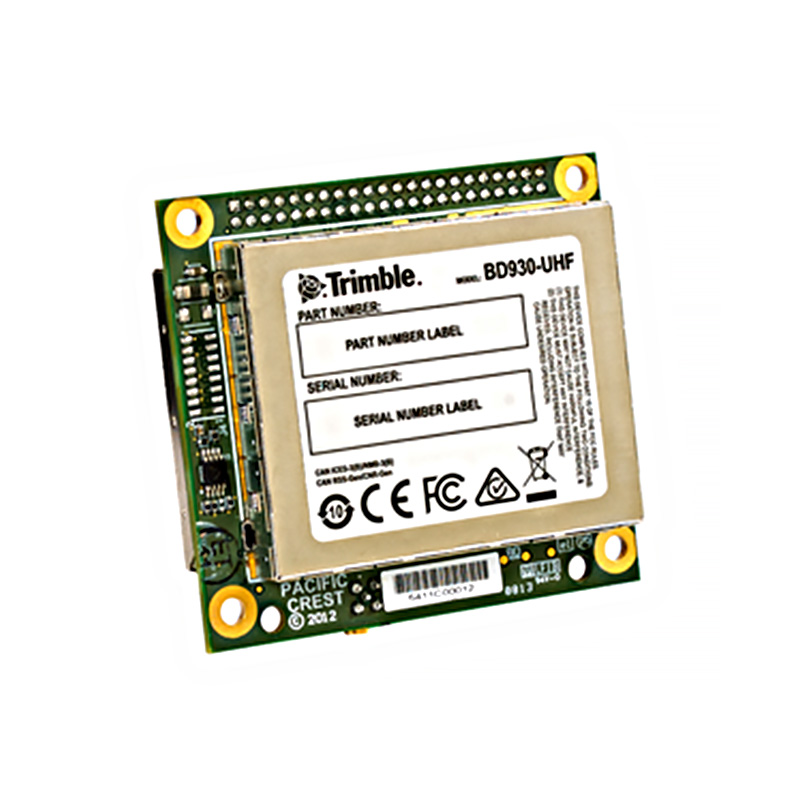

TRIMBLE BD930-UHF

The Trimble BD930-UHF highly configurable module features an advanced UHF modem receiver that allows it to use correction data from a network of GNSS reference stations. Provides reliable and fast RTK positioning with centimeter accuracy. For applications that require less accurate positioning, the receiver is equipped with a PVT motor with a Kalman filter, which provides accurate GNSS and DGNSS positioning in many environments.

The Trimble BD930 -UHF Triple Frequency Receiver can be used to track GPS, GLONASS, Galileo and Beidou. It can be easily upgraded to support the new signals that are available. It has a flexible RS232, USB and Ethernet interface.

The device can be extented by a variety of optional components. Product prices on request.

GPS
91142-01 Trimble BD930-UHF , All options disabled, requires upgrade to output positions
91142-03 Trimble BD930-UHF, GPS, L1 Autonomous/SBAS, 20Hz
91142-05 Trimble BD930-UHF, GPS, L1 DGPS Base/Rover, 20Hz
91142-09 Trimble BD930-UHF, GPS, L1RTK Base/Rover, 20Hz
91142-13 Trimble BD930-UHF, GPS, L1/L2/L5 RTK Base/Rover, 20Hz
91142-14 Trimble BD930-UHF, GPS, L1/L2/L5 RTK Rover,5Hz

GPS+GLONASS
91142-23 Trimble BD930-UHF, GPS, GLN,L1 Autonomous/SBAS, 20Hz
91142-25 Trimble BD930-UHF, GPS,GLN, L1 DGPS Base/Rover, 20Hz
91142-27 Trimble BD930-UHF, GPS,GLN, L1 DGPS Rover, 20Hz
91142-28 Trimble BD930-UHF, GPS,GLN, L1RTK Base/Rover, 5Hz
91142-29 Trimble BD930-UHF, GPS,GLN, L1RTK Base/Rover, 20Hz
91142-32 Trimble BD930-UHF, GPS,GLN, L1/L2/L5 RTK Base/Rover,5Hz
91142-33 Trimble BD930-UHF, GPS,GLN, L1/L2/L5 RTK Base/Rover, 20Hz
91142-34 Trimble BD930-UHF, GPS,GLN, L1/L2/L5 RTK Rover,5Hz
91142-35 Trimble BD930-UHF, GPS,GLN, L1/L2/L5 RTK Rover, 20Hz

GPS+BeiDou
91142-83 Trimble BD930-UHF, GPS,BDS,L1 Autonomous/SBAS, 20Hz
91142-85 Trimble BD930-UHF, GPS,BDS, L1 DGPS Base/Rover, 20Hz
91142-88 Trimble BD930-UHF, GPS,BDS, L1/L2/L5 RTK Base/Rover,5Hz
91142-89 Trimble BD930-UHF, GPS,BDS, L1/L2/L5 RTK Base/Rover, 20Hz

GPS+GLONASS+BeiDou
91142-56 Trimble BD930-UHF, GPS,GLN,BDS L1 Autonomous/SBAS, 20Hz
91142-57 Trimble BD930-UHF, GPS,GLN,BDS L1, DGPS Base/Rover, 20Hz
91142-58 Trimble BD930-UHF, GPS,GLN,BDS, L1/L2/L5 RTK Base/Rover,5Hz
91142-59 Trimble BD930-UHF, GPS,GLN,BDS L1/L2/L5 RTK Base/Rover, 20Hz

GPS+GLONASS+Galileo+BeiDou
91142-63 Trimble BD930-UHF, GPS,GLN,GAL,BDS L1 Autonomous/SBAS, 20Hz
91142-64 Trimble BD930-UHF, GPS,GLN,GAL,BDS L1, DGPS Base/Rover,5Hz
91142-65 Trimble BD930-UHF, GPS,GLN,GAL,BDS L1, DGPS Base/Rover, 20Hz
91142-68 Trimble BD930-UHF, GPS,GLN,GAL,BDS L1,RTK Base/Rover,5Hz
91142-69 Trimble BD930-UHF, GPS,GLN,GAL,BDS L1,RTK Base/Rover, 20Hz
91142-77 Trimble BD930-UHF, GPS,GLN,GAL,BDS L1/L2/L5 RTK Base/Rover, 20Hz
91142-90 Trimble BD930-UHF, GPS,GLN,GAL,BDS L1/L2/L5, Heading Only Rover3

BD930-UHF Evaluation Kit
97979-00 Trimble BD930-UHF Evaluation Kit (Reciever not included)
84946-00 Trimble BD930-UHF Interface board
A02503    Pwr Sply,18V,3Ah
A02584    CBL ASSY TNC-MMCX
84302       UHF Rubber Ducky Antenna, 410 to 470 MHz

BD930-UHF Field Installed Upgrades
95730-01 Trimble BD930-UHF Field Upgrade4

More information can be found in the attached datasheet.

Parameters

Power supply: 3.3 – 5 V Operational temperature: –40 až +80 °C
Dimensions: 60 x 55 x 15 mm Extension: Trimble Maxwell 6 technology
Technology : GPS / BEIDOU / GLONASS / Galileo / QZSS / SBAS Weight: 60 g

Documents for download

GP-BD930-UHF-01.pdf (197.32 kB)
