Trimble BX992, GPS, GLN, MSS, HDG, L1/L2/L5, INS, RTK 1cm Rover, 20Hz

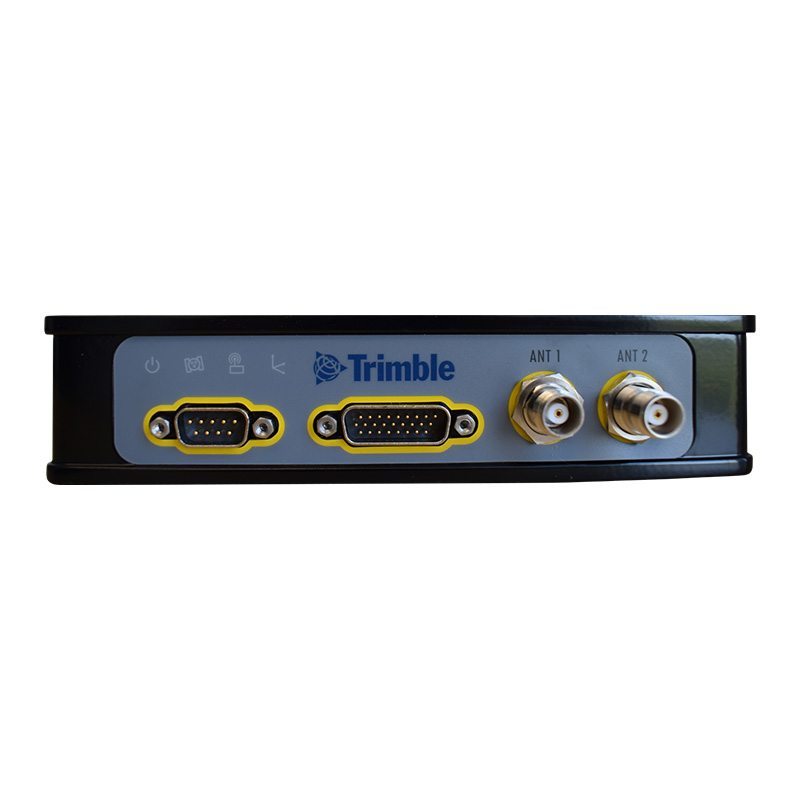

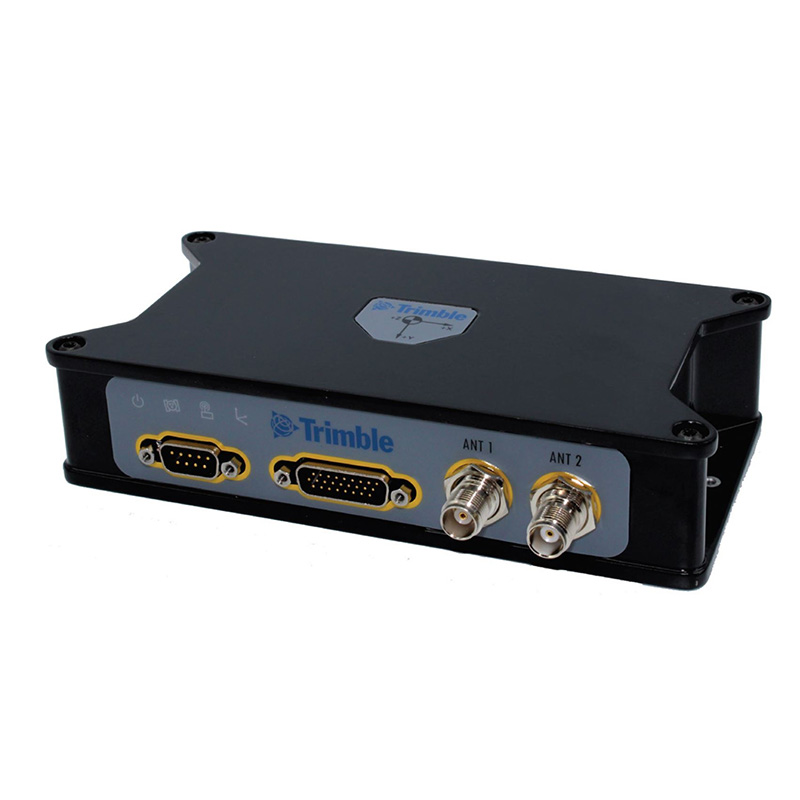

The BX992-27 dual antenna receiver combines Trimble's expertise with GNSS technology to deliver solutions for applications that require continuous accuracy in centimeters, in a compact, rugged package. The BX992 is used to determine highly accurate positioning in all environments.
The Trimble Wireless Module BX992 supports a combination of GPS, GLONASS, BeiDou and Galileo signals. This perfect satellite constellation enables a rapid increase in overall transmission efficiency. The BX992 not only delivers fast and reliable RTK initialization for centimeter positioning, but is also suitable for less demanding applications that do not require centimeter accuracy. The integrated GNSS-inertial unit also provides high-precision GNSS and DGNSS positions even in highly complex environments.
KEY FEATURES:
• Trimble Maxwell 7 Technology
• Onboard high accuracy inertial sensor package integrated with GNSS for precise position and orientation
• 336 Channels for multi-constellation GNSS support
• Trimble RTX and OmniSTAR Support
• Compact design for mobile applications
• Flexible RS232, USB and Ethernet interfacing
• Centimeter level position accuracy
• Advanced RF Spectrum Monitoring
• Rugged IP67 Enclosure
Model list product BX992:
GPS (INS + HDG Disabled)
• 108567-02 - Trimble BX992, GPS, MSS, L1, Autonomous/SBAS, 20Hz
• 108567-03 - Trimble BX992, GPS, MSS, L1, DGPS, MSS, Base/Rover, 20Hz
• 108567-04 - Trimble BX992, GPS, MSS, L1, RTK 1cm Base/Rover, 20Hz
• 108567-05 - Trimble BX992, GPS, MSS, L1/L2/L5, Positions Limited to 30cm Rover, 20Hz
• 108567-06 - Trimble BX992, GPS, MSS, L1/L2/L5, Positions Limited to 10cm Rover, 20Hz
• 108567-07 - Trimble BX992, GPS, MSS, L1/L2/L5, RTK 1cm Rover, 20Hz
• 108567-08 - Trimble BX992, GPS, MSS, L1/L2/L5, RTK 1cm Base/Rover, 20Hz
• 108567-09 - Trimble BX992, GPS, GLN, GAL, BDS, MSS L1/L2/L5/E6, RTK 1cm Base/Rover, 20Hz
GPS + INS + HDG
• 108567-12 - Trimble BX992, GPS, MSS, HDG, L1, INS, Autonomous/SBAS, 20Hz
• 108567-13 - Trimble BX992, GPS, MSS, HDG, L1, INS, DGPS, MSS, HDG, Base/Rover, 20Hz
• 108567-15 - Trimble BX992, GPS, MSS, HDG, L1/L2/L5, INS, Positions Limited to 30cm Rover, 20Hz
• 108567-16 - Trimble BX992, GPS, MSS, HDG, L1/L2/L5, INS, Positions Limited to 10cm Rover, 20Hz
• 108567-17 - Trimble BX992, GPS, MSS, HDG, L1/L2/L5, INS, RTK 1cm Rover, 20Hz
• 108567-18 - Trimble BX992, GPS, MSS, HDG, L1/L2/L5, INS, RTK 1cm Base/Rover, 20Hz
GPS + GLONASS + INS + HDG
• 108567-22 - Trimble BX992, GPS, GLN, MSS, HDG, L1, INS, Autonomous/SBAS, 20Hz
• 108567-23 - Trimble BX992, GPS, GLN, MSS, HDG, L1, INS, DGPS Base/Rover, 20Hz
• 108567-25 - Trimble BX992, GPS, GLN, MSS, HDG, L1/L2/L5, INS, Positions Limited to 30cm Rover, 20Hz
• 108567-26 - Trimble BX992, GPS, GLN, MSS, HDG, L1/L2/L5, INS, Positions Limited to 10cm Rover, 20Hz
• 108567-27 - Trimble BX992, GPS, GLN, MSS, HDG, L1/L2/L5, INS, RTK 1cm Rover, 20Hz
• 108567-28 - Trimble BX992, GPS, GLN, MSS, HDG, L1/L2/L5, INS, RTK 1cm Base/Rover, 20Hz
GPS + GLONASS + Galileo + BeiDou + INS + HDG
• 108567-62 - Trimble BX992, GPS, GLN, GAL, BDS, MSS, HDG, L1, INS, Autonomous/SBAS, 20Hz
• 108567-63 - Trimble BX992, GPS, GLN, GAL, BDS, MSS, HDG, L1, INS, DGPS Base/Rover, 20Hz
• 108567-65 - Trimble BX992, GPS, GLN, GAL, BDS, MSS, HDG, L1/L2/L5, E6, INS, Positions Limited to 30cm Rover, 20Hz
• 108567-66 - Trimble BX992, GPS, GLN, GAL, BDS, MSS, HDG, L1/L2/L5, E6, INS, Positions Limited to 10cm Rover, 20Hz
• 108567-67 - Trimble BX992, GPS, GLN, GAL, BDS, MSS, HDG, L1/L2/L5, E6, INS, RTK 1cm Rover, 20Hz
• 108567-68 - Trimble BX992, GPS, GLN, GAL, BDS, MSS, HDG, L1/L2/L5, E6, INS, RTK 1cm Base/Rover, 20Hz
• 108567-88 - Trimble BX992, GPS, GLN, GAL, BDS, MSS, HDG, L1/L2/L5, E6, INS, RTK 1cm Base/Rover, 20Hz CN
More information can be found in the attached datasheet.
