Omnidirectional antenna GSM/UMTS/LTE

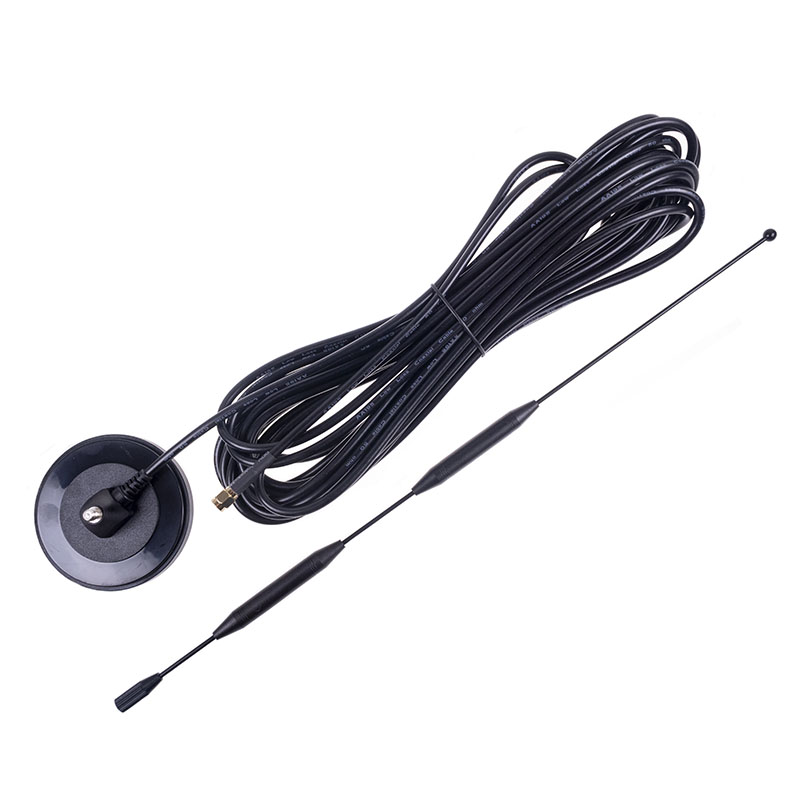

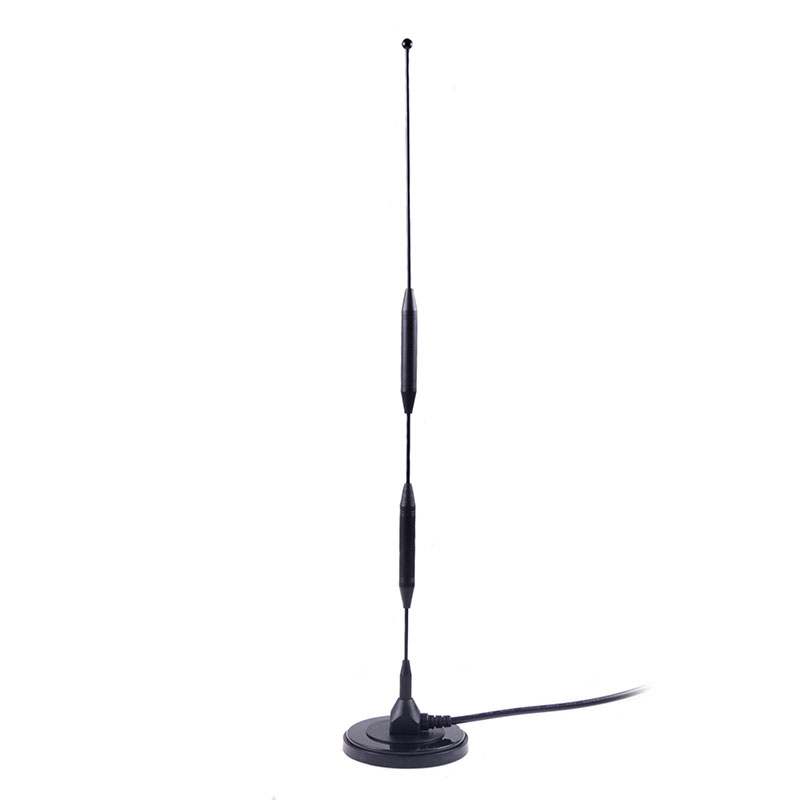

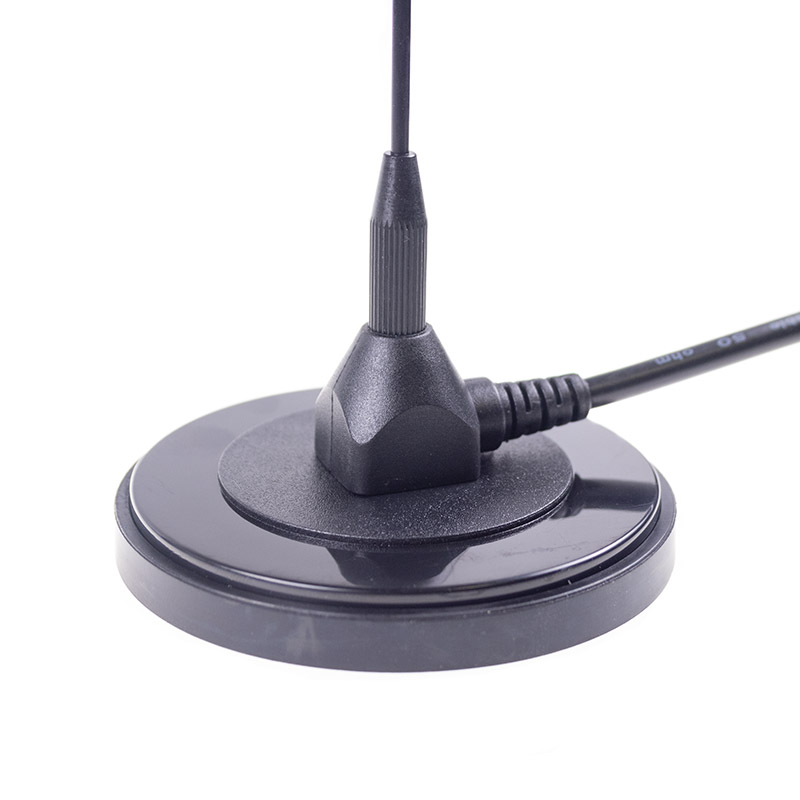

This compact omnidirectional antenna with a magnetic base provides a reliable solution for stable LTE signal reception and transmission. Supporting key frequency bands B31 (450 MHz), B20 (800 MHz), and B8 (900 MHz), it is fully compatible with most modern modems and routers. The main advantage is the magnetic base, allowing for instant mounting on any metal surface. The antenna features a 3 dBi gain for high-quality data transfer and comes equipped with a 3-meter RG174/U cable and a universal SMA (m) connector.

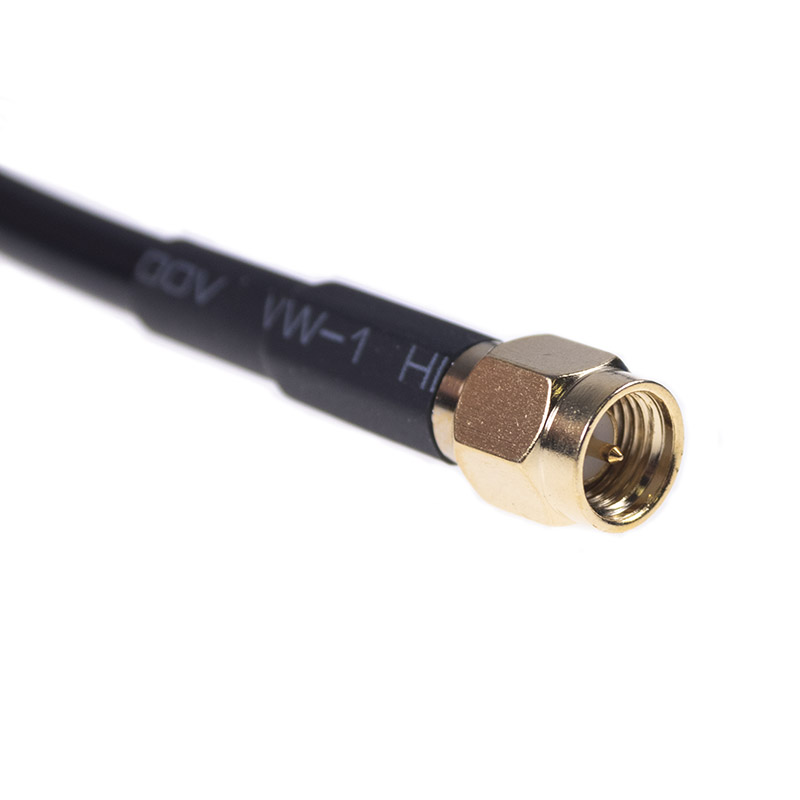

Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications RG174 / U:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.
Technical parameters can be found in the attached datasheet.
