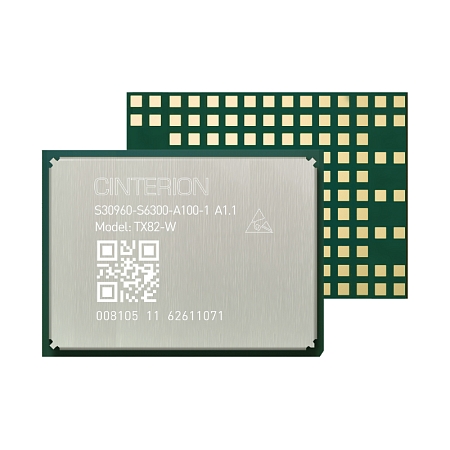

Telit Cinterion TX82-W Rel.1.3
This item can only be purchased in multiples of 500 pieces.
The miniature IoT Cinterion TX82-W Rel.1.3 LTE / GNSS module enables low-energy connectivity (LPWA) for a range of new industrial applications. Cinterion's innovative platform uses Qualcomm's MDM9205 chipset. The cellular module provides global LTE cat connectivity. M1 and LTE Cat. NB1 / 2 with 2G fallback support.
IoT miniature modules are 3GPP Rel ready. 14 for the upcoming 5G. migration. The module is compatible with LGA and thanks to its design allows easy migration between other Cinterion products.
Ideal for small battery-powered devices in remote locations such as smart meters, trackers, healthcare applications, agriculture, portable devices and smart city solutions.
The miniature Cinterion IoT Modules deliver an extended coverage range simultaneously reducing power consumption by 70%.
This TX82-W Rel.1.3 module can be used anywhere in the world.
Key Features:
• 3GPP Rel.14 Compliant Protocol
• LTE Cat. M1/NB1/NB2
• Compatible with Cinterion® Things footprint
• FDD-LTE Bands:1, 2, 3, 4, 5, 8, 12, 13, 14, 18, 19, 20, 25, 26, 27,28, 66, 71, 85
• Quad-Band 2G (only for TX82-W)
• Data only / voice variant (a feature planned for the future)
• LTE Cat.M1
DL: max. 300 kbps, UL: max. 1.1 Mbps
• LTE Cat.NB1
DL: max. 27 kbps, UL: max. 63 kbps
• LTE Cat.NB2
DL: max. 124 kbps, UL: max. 158 kbps
• LTE Power Class 5 (20 dBm)
• Integrated GNSS support(GPS/BeiDou/Galileo/GLONASS)
• Secure Connection with TLS
• Operating temperature: -40°C to +85°C
• Dimensions: 15.3 mm x 20.9 mm x 2.8 mm
• Weight: 2.5g
Společnost Telit se spojila s Thales Gemalto a vytvořila tak významného celosvětového hráče. Nově vzniklá skupina Telit Cinterion a je významným výrobcem bezdrátových modulů Cinterion® a lídrem v oblasti digitální bezpečnosti a šifrování při výrobě čipů. SECTRON je evropský autorizovaný distributor této divize Telit Cinterion.
Technické parametry naleznete v přiloženém datasheetu.
