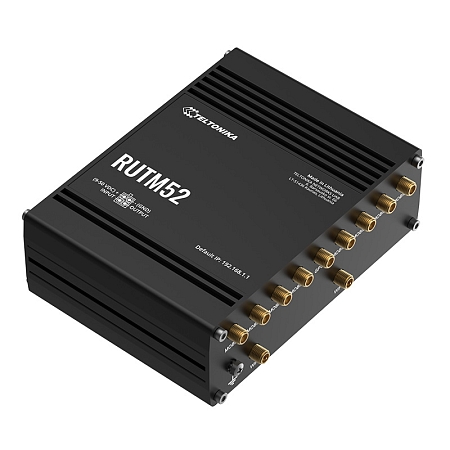

5G router Teltonika RUTM52
Teltonika RUTM52 is a high-speed 5G router with a dual-core MediaTek 880 MHz processor - MIPS1004Kc and 256 MB RAM, DDR3. The device is designed for mission-critical applications. The cellular part consists of a dual 5G modem, which allows for double the mobile speed of a permanent connection with a 4x4 MIMO antenna configuration. This router also supports multi-WAN connections and 4G LTE Cat 20 fallback compatibility. With two SIM card slots, eSIM support and compatibility with 5G SA and NSA architectures, it ensures fast and reliable connections. The Load balancing function allows for an even distribution of data traffic between different connections. As for wireless connectivity, the router can use Wi-Fi 5 (802.11b/g/n/ac Wave 2) technologies and is equipped with five Gigabit Ethernet ports, which increase its overall performance.
The robust design of the Teltonika RUTM52 device ensures its reliable operation even in extreme industrial conditions. The RUTM52 5G router is an ideal choice for applications that require a stable and high-performance connection. It supports SA and NSA architectures for the use of 5G infrastructure. The main difference between NSA (Non-Standalone Architecture) and SA (Standalone Architecture) is that NSA anchors the control signalling of 5G radio networks to the 4G core, while the SA scheme connects' >' > 5G networks directly to the 5G core network, the control signalling does not depend on 4G at all sewing.
Data security is ensured by a wide range of software functions, such as control of SMS messages, firewall, OpenVPN, IPSec, RMS. Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL).
The industrial gateway Teltonika RUTM51 is equipped with the RutOS system. It is an operating system based on OpenWRT Linux, which is a big plus for choosing Teltonika routers. This system offers advanced security features and compatibility with the RMS remote message system.
Key features of the RUTM52:
• Ethernet interface: - 1 x WAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- 4 x LAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
• Dual 5G modem
• WiFi 5 support
• Cellular: 5G, 4G (LTE Cat 20), 3G
• Wide range of supply voltages: 9-50 V
• DUAL SIM and eSIM support
• RutOS – an easy-to-use, secure and feature-rich operating system
• Teltonika Remote Management System
• Support for SA (Standalone Architecture) and NSA (Non-Standalone Architecture)
• Mounting on a DIN rail
• Degree of protection: IP30
• Dimensions: 132 x 44.2 x 95.1 mm
• Weight 560 g
Standard package contains:
• Teltonika RUTM52 Router
• 18 W PSU
• 8 x Mobile antennas (magnetic, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
