Numer katalogowy : GM-TSW040
EAN: 4779051841448

Teltonika Switch TSW040

Numer katalogowy : GM-TSW040
EAN: 4779051841448

Teltonika Switch TSW040

Teltonika TSW040 is an affordable unmanaged Ethernet switch with eight PoE+ ports and a total power of 240 W. Each port provides up to 30 W of power. It provides ease of use without the need for configuration and installation.

237.41 PLN (54.45 €) z VAT (23%) / szt.

bez VAT 196.21 PLN / szt.

Na magazynie < 10 szt.
i

Jeżeli klient nie jest zarejestrowanym podatnikiem VAT, zostanie mu doliczony podatek według jego kraju zamieszkania.

Szczegółowy opis

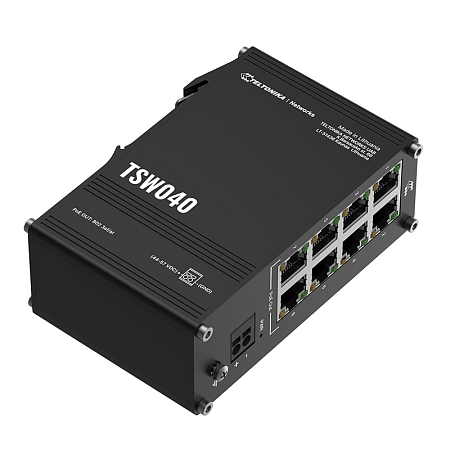

Teltonika TSW040 PoE+ Switch

The Teltonika TSW040 is an affordable unmanaged Ethernet switch with eight PoE+ ports and a total power output of 240W. Each port provides up to 30W of power. Compared to the basic PoE version, PoE+ technology offers greater flexibility and options for powering network devices. Thanks to its higher power output and advanced features, it enables more efficient and simpler deployment of various network devices without the need for additional power cables.

The industrial Ethernet PoE+ switch Teltonika TSW040 is equipped with a 2-pin power input. The TSW040 has a wide input voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.

Due to the robust construction with an integrated DIN rail holder, Teltonika TSW040 enables simple installation. The plug-and-play switch provides ease of use without the need for configuration and installation, making it an ideal solution for industrial environments.

Key Features:

• All LAN ports support automatic MDI/MDIX switching
• 8× Ethernet port with 10/100 Mbps speeds
• Plug-n-Play, no additional configuration required
• Support for IEEE 802.3i, 802.3u, 802.3ab, 802.3x a 802.3az standards
• Integrated DIN rail mount
• 2-pin industrial power input for flexible use
• Low power consumption: 0.5 W when idle, max. 1.5 W
• Power supply: 7–57 VDC (power adapter not included)
• PoE+ voltage range: 44-57 VDC
• Operating temperature: -40 °C to 75 °C
• Degree of protection: IP30
• Dimensions: 113.1 × 41.2 × 74.6 mm
• Weight: 280 g

Package contains:

Switch PoE Teltonika TSW040
• QSG (Quick Guide)

We recommend using the complete user manual and documents for configuration, official materials can be found here.

Quick Start Guide Video

More information can be found in the attached datasheet and quick manual.


Parametry

Temperatura robocza -40 ~ +75  °C Wymiary 113.1 x 41.2 x 74.6  mm
Technologia Ethernet Waga 280  g
Stopień ochrony IP IP30 Interfejs komunikacyjny 8x RJ45
Montaź DIN Zasilanie 7 – 57  V

237.41 PLN (54.45 €) z VAT (23%) / szt.

bez VAT 196.21 PLN / szt.
