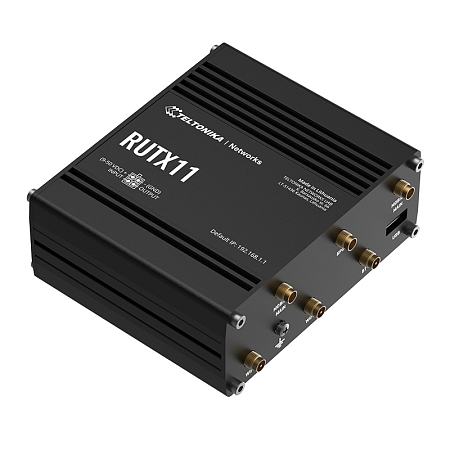

Teltonika RUTX11 Industrial Router PoE
Router Cost-effective industrial Teltonika RUTX11 router LTE - designed for LTE and WLAN technologies. Currently, it is one of the most powerful devices in the Teltonika series. It features Dual-SIM slots, 4 x Gigabit Ethernet ports, Dual-Band AC Wi-Fi, Bluetooth LE, USB interface and passive PoE. RUTX11 comes with all RutOS software and security features. This device is ideal for advanced industrial and enterprise applications.
Key Features:
• LTE Cat. 6 with speeds up to 300 Mbps
• Wave-2 802.11ac Dual-Band Wi-Fi with up to 867 Mbps
• 4x Gigabit Ethernet at up to 1000 Mbps
• Dual-SIM with Network Failover, Backup WAN and other SW functions
• Compatible with RMS - Teltonika Remote Management System
• Bluetooth LE for short-range sensor communication
• Quad-Core CPU - ARM Cortex A7 CPU, 717 MHz
• Memory: 256 MB SPI Flash, 256 MB DDR3 RAM
• RutOS - a secure operating system, easy to use
Standard package contains:
• Router Teltonika RUTX11
• Euro PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (swivel, RP-SMA male)
• 1 x GNSS antenna (adhesive, SMA Male)
• 1 x Bluetooth antenna (magnetic, RP-SMA male)
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
Teltonika RUTX11 is a powerful, LTE Cat 6 networking device that can reach cellular speeds of up to 300Mbps with Carrier Aggregation. It boasts Wave-2 802.11ac Dual Band Wi-Fi, four Gigabit Ethernet ports, USB-to-Serial support, Bluetooth LE, and sturdy aluminum housing with a DIN rail mounting option.
In addition, Teltonika RUTX11 has Dual SIM with auto-failover, backup WAN, and other switching scenarios, meaning that when crossing international borders, the router will switch to another operator to avoid roaming costs.
Teltonika RUTX11 is compatible with the Teltonika Networks Remote Management System (RMS). This makes remote management of the entire fleet of RUTX11 devices on any number of passenger trains incredibly easy. Firmware updates, password changes, and troubleshooting can be performed on all networking devices within a few clicks – saving a great deal of time and costs in the process.
RMS Remote Management System
Try RMS for free by clicking on this link to register your free 30-day demo account at link https://rms.teltonika.lt/
Accessories
*Optional accessories
AO-ALTE-G024LS - Antenna LTE Magnetic 024L, 5 dBi, SMA(m), RG58/3m
For this router RUTX11 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Router RUTX11 version 020G00 for Passenger Trains
Teltonika also provides a version of the RUTX11 020G00 has recently become EN 45545-2-certified, meaning it is safe and approved for use in passenger trains. The networking device must comply with European Standard EN 45545-2, which dictates the many fire protection regulations for railway vehicles.
Passenger trains, as a lower-emissions means of transportation, are growing in popularity in Europe. But there is an additional aspect of passenger life that is much easier to achieve in trains than in planes: Internet connectivity. This increases the demand for railway connectivity for both passenger and operational benefits.
The value proposition of railway connectivity is high. Reliable Wi-Fi hotspots for passengers enable comfortable on-the-go work and entertainment possibilities, while the train service itself benefits from connectivity-powered CCTV systems, digital signages, remote personnel communication, and more. However, while train connectivity is easier to implement than airplane connectivity, it is far from actually easy. First, a passenger train’s network is often made up of an integrated network of individual devices. This is because each wagon often needs its own networking device to ensure stable connectivity and data throughput.
And since we’re talking about European trains, the device must be able to switch operators for when international trains cross the border – which is often.
Other use-cases:
https://eshop.sectron.eu/en/teltonika-rutx11-zachranuje-zivoty/a-6409/
https://eshop.sectron.eu/en/iot-technologie-se-prosazuji-ve-zdravotnictvi/a-6410/
More information can be found in the attached datasheet and quick manual.
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the router from unpacking the box, inserting the SIM card, connecting the antennas, and logging into the administration.
