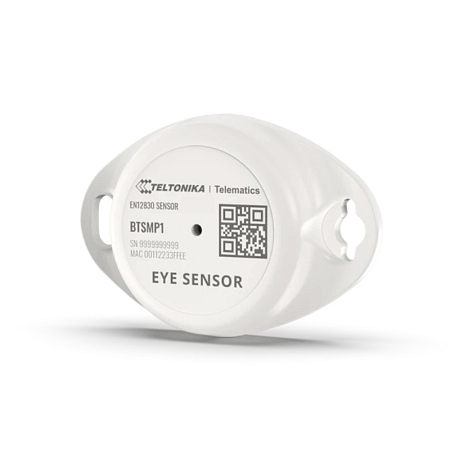

Teltonika EYE Sensor EN12830 Bluetooth for Accurate and Reliable Temperature Monitoring - BTSMP183ZU02
The Teltonika Bluetooth EYE Sensor EN12830 - BTSMP183ZU02 sets a new standard in telematics. This temperature monitoring sensor ensures highly accurate temperature measurements and meets the stringent requirements of the European EN12830 standard, essential for the safe transport and storage of temperature-sensitive goods.
With its versatility, user-friendly data management, and seamless integration with the Teltonika EYE app, it is ideal for monitoring temperatures in cold chain logistics, warehouses, and during transportation. The sensor can be used for various purposes, including pharmaceutical cold chain logistics, agricultural product storage, and even hospital and laboratory sample storage.
Key Benefits of the EYE Sensor EN12830 - BTSMP183ZU02
• EN12830 Certification: Compliance with standards for transporting and storing sensitive products
• High Measurement Accuracy: Accuracy class of 0.5 °C within a range of -20 to +60 °C
• Calibrated Sensor: Calibrated in an ISO 17025-certified laboratory
• Internal Memory: Stores temperature readings for up to 345 days.
• Safe Design: Materials meet EU and FDA standards for food contact.
• Bluetooth 4.2 Technology: Features low energy consumption to extend battery life.
• IP67 Protection Rating: Provides resistance against dust and water.
Hibernate Mode (Device OFF from Factory)
The device is delivered in Hibernate mode (device OFF from factory) to extend battery life. It can be activated by applying a magnet, enabling it to wake up and pair via Bluetooth Low Energy (BLE). An activation magnet is not included in the package.
Easy Setup with the EYE APP
The EYE Sensor EN12830 can be easily configured using the EYE APP mobile application (available as an .APK file for Android). The app allows users to:
• Activate temperature data logging.
• Set measurement intervals.
• Download recorded data in .CSV format (including temperature, date, and time).
Compatibility with GPS Trackers for Fleet Management
The EYE Sensor EN12830 can connect via Bluetooth to FM trackers, providing real-time temperature updates. This wireless connectivity ensures cost-effective installation and operation while minimizing interference. If damaged, lost, or stolen, the Teltonika EYE EN12830 sensor can be quickly replaced. The sensor supports iBeacon and Eddystone protocols.
ISO 17025-Certified Calibration
Each EYE Sensor EN12830 undergoes calibration in an ISO 17025-certified laboratory at three temperature points, ensuring:
• High measurement accuracy.
•Compliance with international standards.
• Reliable results for critical applications (e.g., quality control, safety, and regulation).
The Teltonika EYE Sensor EN12830, combined with a GPS tracker FMB140 or other Bluetooth® devices such as Teltonika RUTX10, RUTX11, or RUTX12, offers an unparalleled combination of features for efficient cargo tracking, distribution management, and fleet operations.
The video introduces common use cases, such as temperature monitoring and cost tracking, and provides tips for effective use of sensors.
More information can be found in the attached datasheet.
