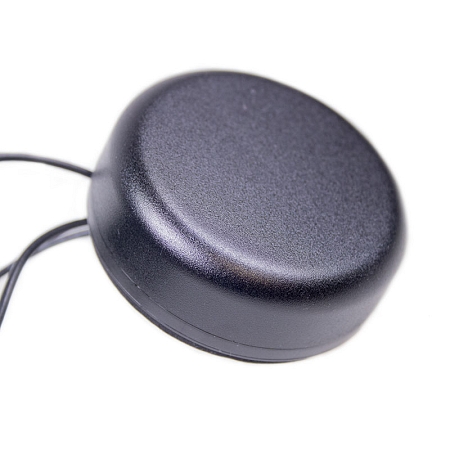

Antenna GSM/UMTS/GPS/WiFi Mounting R41, RG174/1.5m, 2x SMA(m), SMA-RP(f)

Product code: AO-AKOM-41SSSRP15 /Manufacturer: SECTRON

New item
kombinovana-antena-obrazek

33.79 EUR

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Directional, combined GSM/GPS/UMTS/WIFI antenna

Directional, combined antenna for receiving signal in GSM/GPS/UTMS/WIFI technologies. The antenna operates in 900/1575.42/1800/2100/2400 MHz bands. In combination with an amplifier, this active antenna achieves a total gain of 30 dBi. Thanks to the ability to operate with the mentioned technologies, the antenna is perfect for use in public transport and other means of transport.

More information can be found in the attached datasheet.


Parameters

Certifikace: ISO 9001 / ISO 14001 impendance: 50 Ohm
Cable: RG174/U Connector: SMA(m) / SMA-RP
LNA Gain: 30 dBi Polarization: Linear
Execution: External Operational temperature: -30 °C - +90 °C
Dimensions: 80 x 25 mm Directivity: Directional
Technology : GSM / GPS / UMTS / WiFi Weight: 160.6 g
VSWR: <2.0:1 Radiation angle: H 360° V 30°
GAIN: 0.2 dBi / 32 dBi / 8 dBi / 6 dBi TYPE OF ATTACHMENT: Mounting
