Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 698-2700 MHz, 3 dBi, SMA(m)

Product code: AO-ALTE-FSMAK
Producer: SECTRON

Antenna GSM/UMTS/LTE FLAT Stick 90°/180°, 698-2700 MHz, 3 dBi, SMA(m)

Omnidirectional LTE antenna for GSM/UMTS/LTE technologies. The antenna operates in bands 698-2700 MHz. It is suited for modems/routers.

9.99incl. VAT (21%) / pc

excl. VAT 8.26 € / pc

Temporarily unavailable
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

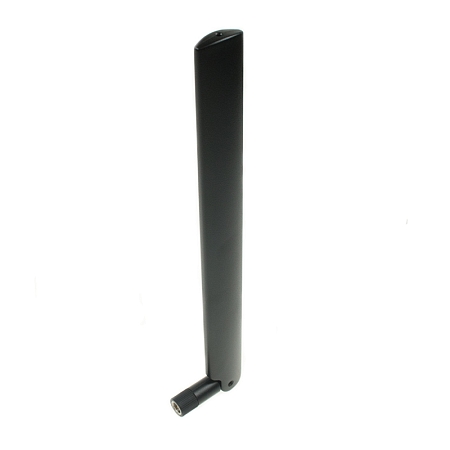

Omnidirectional LTE stick antenna

Omnidirectional LTE antenna for GSM/UMTS/LTE technologies. The antenna operates in bands 698-2700 MHz. It is suited for modems and routers and equipped with an SMA (m) connector.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel N/A
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -10 ~ +50  °C Dimensions 201 x 20  mm
Directivity Omnidirectional Technology GSM , UMTS , LTE
Weight 23  g Gain 3  dBi
VSWR <5.0:1 Radiation angle H 360 V 30
Type of attachment Connector mount
