Product code: AO-ALTE-MG9S
Producer: SECTRON

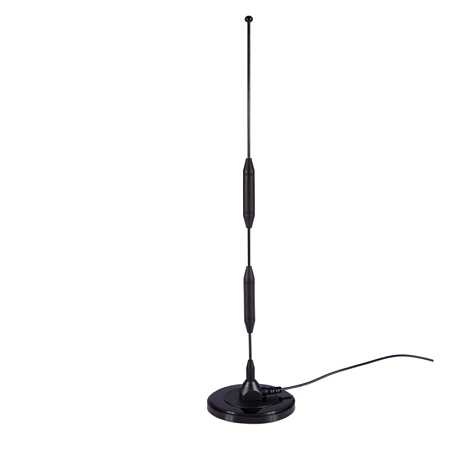

Antenna LTE Magnet Mount 90, 5-9 dBi, SMA(m), RG174/3m

Product code: AO-ALTE-MG9S
Producer: SECTRON

Antenna LTE Magnet Mount 90, 5-9 dBi, SMA(m), RG174/3m

Omnidirectional antenna with a magnetic base for receiving/transmitting GSM/UMTS/LTE signals. The GSM antenna operates in bands 700/800/900/1700/1800/1900/2100/2500/2600/2700 MHz.

14.77incl. VAT (21%) / pc

excl. VAT 12.21 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional antenna GSM/UMTS/LTE

Omnidirectional antenna with a magnetic base for receiving/transmitting GSM/UMTS/LTE signals. The GSM antenna operates in bands 700/800/900/1700/1800/1900/2100/2500/2600/2700 MHz. The antenna is designed for placement on a metal surface and is suitable for connection with modems and routers and is supplied with a 3 m RG174 / U cable, with an SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +90  °C Dimensions 81 x 447  mm
Directivity Omnidirectional Technology GSM , UMTS , LTE
Weight 248.7  g Gain 5-9  dBi
VSWR <1.7:1 Type of attachment Magnetic
Certification RoHS , ISO9001 , ISO14001

14.77incl. VAT (21%) / pc

excl. VAT 12.21 € / pc
