Product code: AO-A915-G402SRP
Producer: SECTRON

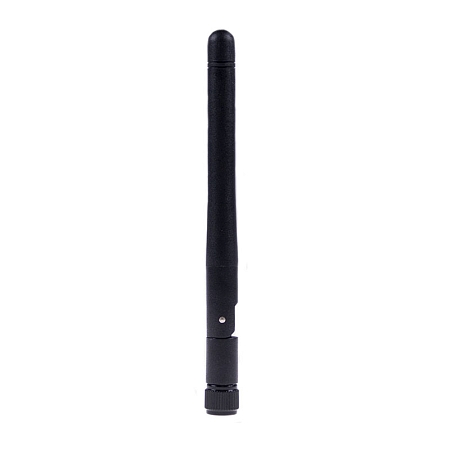

Antenna ISM Connector Mount G402, 915 MHz, 90°/180°, 2 dBi, RP-SMA(pin f)

News
Product code: AO-A915-G402SRP
Producer: SECTRON

Antenna ISM Connector Mount G402, 915 MHz, 90°/180°, 2 dBi, RP-SMA(pin f)

Omnidirectional antenna designed to receive ISM signal. Operates in the 915 MHz band and is ideal for IoT networks.

4.03incl. VAT (21%) / pc

excl. VAT 3.33 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Antenna ISM Connector Mount G402

Omnidirectional antenna designed to receive ISM signal. Operates in the 915 MHz band and is ideal for IoT networks. ISM (industrial, scientific and medical) bands are bands intended for radio broadcasting in various branches of industry, healthcare and others.The antenna is equipped with an RP-SMA (pin f) connector with a characteristic impedance of 50 Ω.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector SMA(m)
Polarization Linear Execuion External
Operating temperature -40 ~ +85  °C Dimensions 10 x 108.5  mm
Directivity Omnidirectional Technology ISM
Weight 9.87  g Gain 2  dBi
VSWR <2.4:1 Type of attachment Connector mount
Certification RoHS

4.03incl. VAT (21%) / pc

excl. VAT 3.33 € / pc
