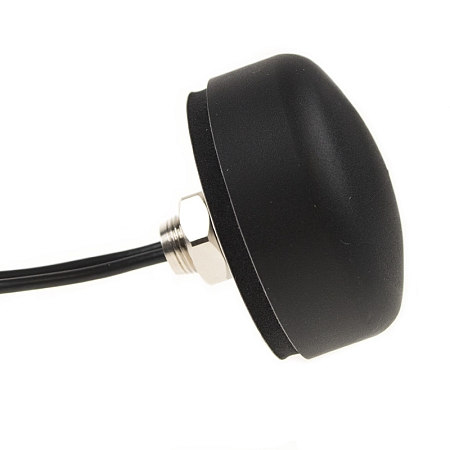

Omnidirectional, combined, outdoor antenna suitable for GSM/UMTS/LTE and GPS/GLONASS
Omnidirectional, combined, outdoor antenna is suitable for GSM/UMTS/LTE and GPS/GLONASS signal receival. The antenna functions in the bands of 800/900/1700/1800/2100/2400/2600/1575.42/1602 MHz. In combination with amplifier its gain is around 2/30 dBi. Thanks to IP67, this antenna is suitable for outdoor use. The antenna is supplied with two 3 m RG316 cables and with two SMA(m) connectors.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications RG316:
RG316 coaxial low-loss high-frequency cable that is compatible with connectors applicable to a cable with the outer diameter of 2.49 mm. The frequency range is 0 - 3 GHz. The RG316 cable is often used in radio frequency and telecommunication applications, for the transmission of high frequency signals, and also in wireless devices. It is suitable for applications that require good performance and stability in high temperature environments. The operating temperature of this cable is -55 to + 200 ° C. The shortening factor is set to 0.7.
Technical parameters can be found in the attached datasheet.
