Product code: AO-ALTE-36S8
Producer: SECTRON

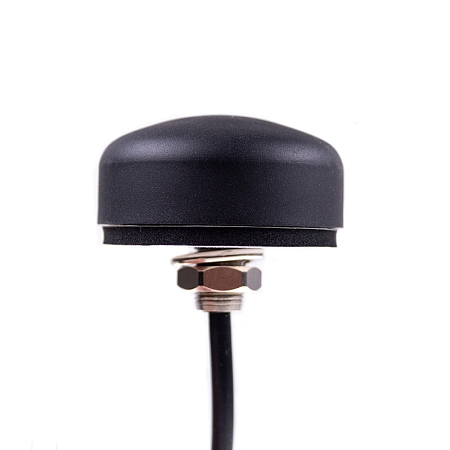

Antenna LTE Screw Mount R36, 2 dBi, SMA(m), RG58/8m, IP67

Product code: AO-ALTE-36S8
Producer: SECTRON

Antenna LTE Screw Mount R36, 2 dBi, SMA(m), RG58/8m, IP67

Omnidirectional antenna for GSM/UMTS/LTE technologies. The antenna operates in bands 800∼900/1700∼2100/2500∼2700 MHz.

34.75incl. VAT (21%) / pc

excl. VAT 28.72 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

GSM/UMTS/LTE antenna

Omnidirectional antenna for GSM/UMTS/LTE technologies. The antenna operates in bands 800∼900/1700∼2100/2500∼2700 MHz technologies. It is suited for modems/routers. Thanks to IP67, this antenna is suitable for outdoor use. The antenna is supplied with 8 m cable RG58 with SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanisms. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 75 ° C. This cable is suitable for external WiFi/GPS/GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/N/SMA/TNC and others. There are also specially modified types of RG58 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.


Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG58/U
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +80  °C Dimensions 54.4 x 24.6  mm
Directivity Omnidirectional Technology LTE , GSM , UMTS
Weight 125  g Gain 2  dBi
VSWR <2.0:1 Type of attachment Screw Mount
Certification RoHS , ISO9001 , ISO14001 , CNS 12681 Ingress protection (IP) IP67

34.75incl. VAT (21%) / pc

excl. VAT 28.72 € / pc
