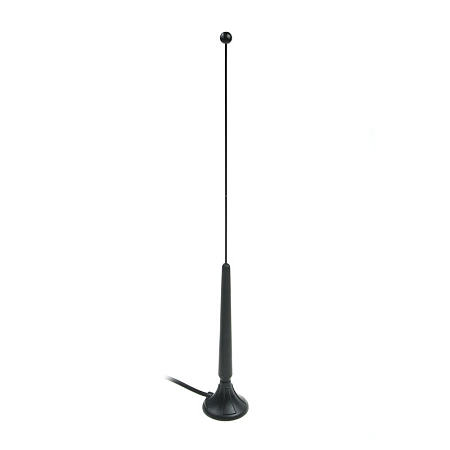

Antenna UMTS/GSM Magnetic U30, 3dBi, FME(f), RG174/3m

Product code: AO-AUMTS-M3F
Producer: SECTRON

Antenna UMTS/GSM Magnetic U30, 3dBi, FME(f), RG174/3m

Omnidirectional magnet mount antenna designed for signal reception in GSM/UMTS technologies. The antenna operates in bands 900/1800/1900/2100 MHz.

9.99incl. VAT (21%) / pc

excl. VAT 8.26 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional GSM/UMTS antenna

Omnidirectional antenna designed for signal reception in GSM/UMTS technologies. The antenna operates in bands 900/1800/1900/2100 MHz. The antenna is designed for placement on a metal surface and is suitable for connection with modems and routers. It is supplied with 3 m cable RG174 with FME(f) connector.

Connector specifications FME:

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

Connector specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector FME(f) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -40 ~ +85  °C Dimensions 26.7 x 214  mm
Directivity Omnidirectional Technology GSM , UMTS
Weight 48.37  g Gain 3  dBi
VSWR <2.0:1 Radiation angle H 360 V 30
Type of attachment Magnetic
