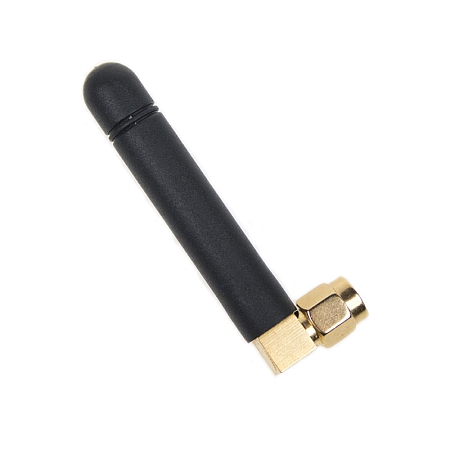

Omnidirectional UMTS/GSM antenna
Omnidirectional antenna with SMA(m) connector for GSM / UMTS signal reception. The antenna operates in 800/900/1700/1800/1900/2100 MHz bands. Used in vehicles to connect to cellular modems and routers or signal repeaters.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Technical parameters can be found in the attached datasheet.
