Product code: AW-A2458G-PC15I
Producer: SECTRON

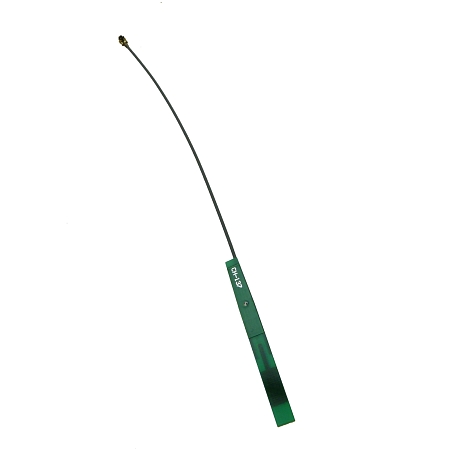

Antenna WiFi Internal PC15, PCB, 2.4/5.8 GHz, IPEX MHF(f) RA, 1.13mm Coaxial Cable/100mm

Product code: AW-A2458G-PC15I
Producer: SECTRON

Antenna WiFi Internal PC15, PCB, 2.4/5.8 GHz, IPEX MHF(f) RA, 1.13mm Coaxial Cable/100mm

Directional internal WiFi antenna working in 2.4 GHz and 5 GHz bands.

3.69incl. VAT (21%) / pc

excl. VAT 3.05 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Directional internal WiFi antenna

Directional internal WiFi antenna working in 2.4 GHz and 5 GHz bands. The antenna is suited for devices that support WLAN technology. It has an IPEX-MHF(f) connector.

Specifications connector IPEX MHF:

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.

Specifications cable 1.13:

The LP 040 coaxial cable is compatible with connectors that are applicable to a 0.81 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RF 1.13
Connector IPEX-MHF(f) R/A Maximum input power 10  W
Polarization Linear Execuion Internal
Operating temperature -30 ~ +80  °C Dimensions 50 x 4.8 x 0.6  mm
Directivity Directional Technology WLAN
Weight 0.86  g Gain 3.5  dBi
VSWR <2.0:1 Radiation angle H 360 V 30
Type of attachment Soldered

3.69incl. VAT (21%) / pc

excl. VAT 3.05 € / pc
