Product code: AW-A24G-W410SRP
Producer: SECTRON

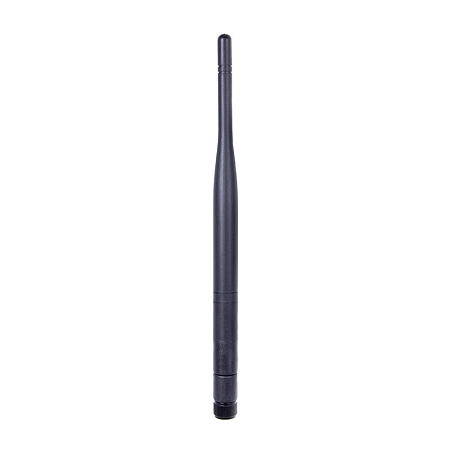

Antenna WiFi Connector Mount W410, 2.4 GHz, 90°/180°, 0.5 dBi, RP-SMA(f pin)

Product code: AW-A24G-W410SRP
Producer: SECTRON

Antenna WiFi Connector Mount W410, 2.4 GHz, 90°/180°, 0.5 dBi, RP-SMA(f pin)

Omnidirectional WiFi antenna working in band 2.4 GHz. It is suitable for homes or offices.

4.69incl. VAT (21%) / pc

excl. VAT 3.88 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional WiFi antenna

Omnidirectional WiFi antenna working in band 2.4 GHz. Suitable for Wi-Fi networks in homes or smaller buildings. It has an SMA-RP(f pin) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.


Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector RP-SMA(f)
Maximum input power 10  W Polarization Linear
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 37.5 x 171 x 13  mm , 195 x 13  mm Directivity Omnidirectional
Bandwidth 83.5  MHz Technology WIFI
Weight 26.8  g Gain 0.5  dBi
VSWR <2.0:1 Radiation angle H 360 V 30
Type of attachment Connector mount
