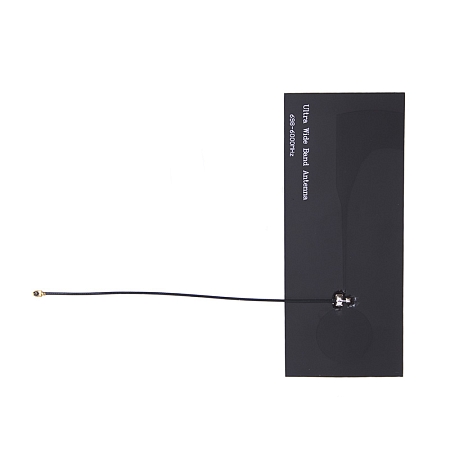

Omnidirectional internal adhesive 5G antenna
The omnidirectional internal adhesive 5G antenna is designed for receiving and transmitting signals in the 5G network. It operates in the 700 - 6000 MHz bands. It is adjusted and ready for the upcoming ' >5G technology. It is suitable for use in M2M applications as well as IoT devices and systems for connection with development modules equipped with IPEX connectors. The antenna includes a 1.37 mm diameter cable terminated with an IPEX MHF4(f) RA connector and a double-sided 3M tape for easy installation.
Cable specifications RF 1.37:
The RF 1.37 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments.
Connector specifications IPEX MHF:
IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.
Technical parameters can be found in the attached datasheet.
