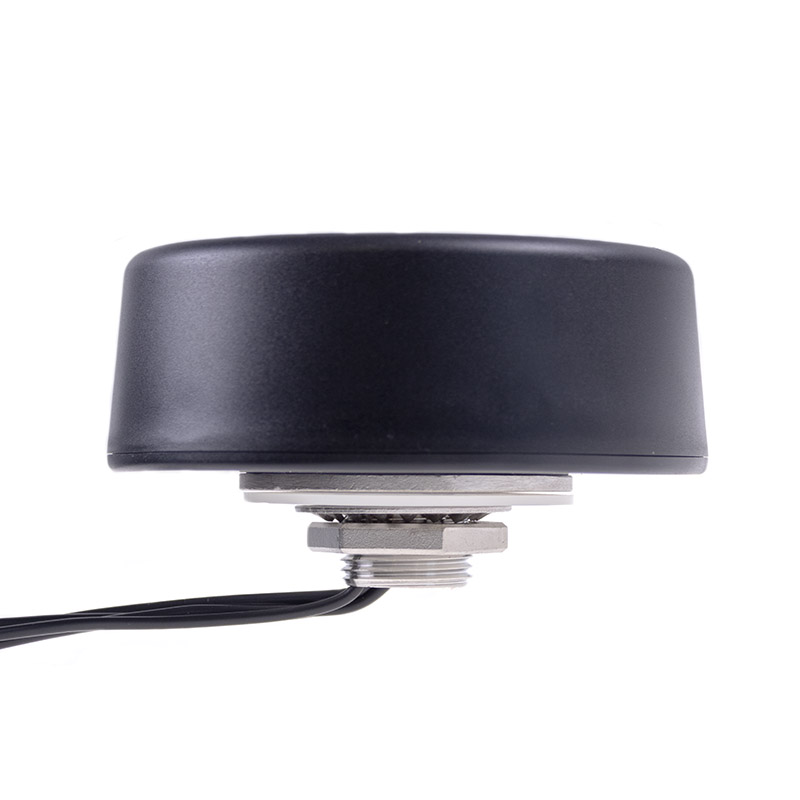

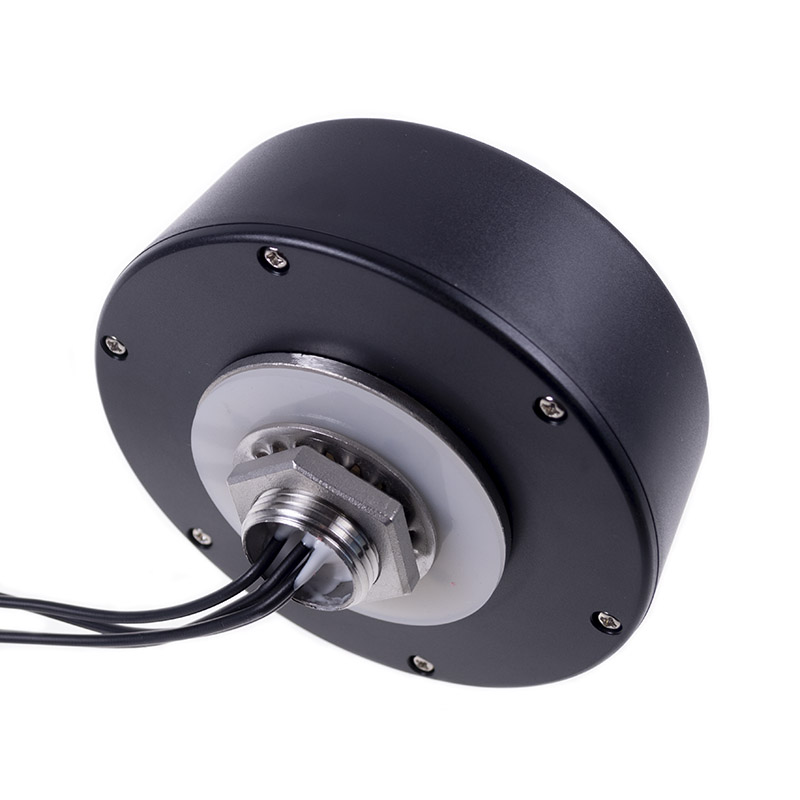

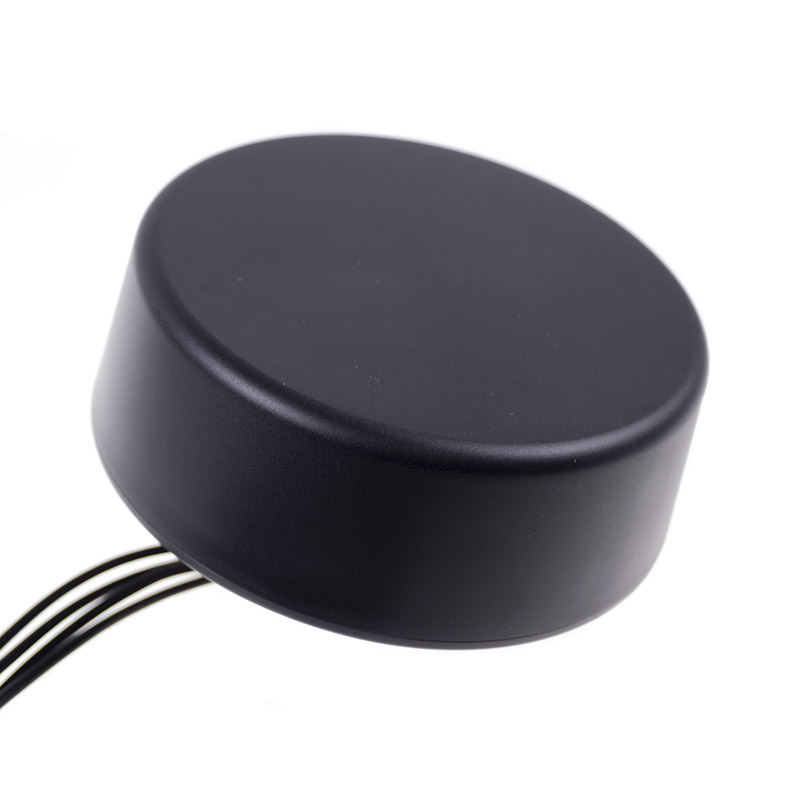

Antenna 5G MIMO Screw Mount
The omnidirectional MIMO 5G antenna is designed for comprehensive signal reception in 5G, LTE, UMTS, GSM, GNSS and WiFi technologies. Thanks to its wide frequency range (700–5000 MHz), it is fully prepared for 5G network standards.
By using MIMO (Multiple Input, Multiple Output) technology, the system, in combination with appropriate placement, achieves significantly higher transmission speeds and connection stability than conventional LTE solutions.
The antenna can be used in the M2M area and also in IoT devices and IoT systems. Thanks to the IP67 protection level, it is suitable for outdoor use. The antenna system is supplied with four 3 m RG174/U cables, terminated with SMA (m) connectors.
Cable specifications RG174 / U:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

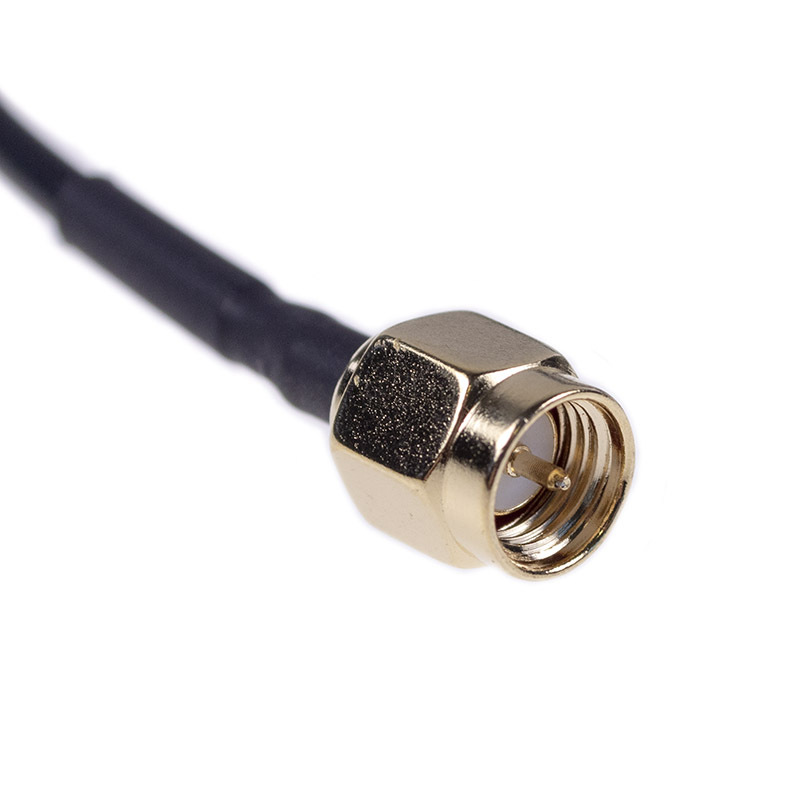

Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties
Technical parameters can be found in the attached datasheet.
