Antenna 868 MHz Stick 90°/180° G410, 3 dBi, SMA(m), white

Product code: AO-A868-G410S-W /Manufacturer: SECTRON

New item
ao-a868-g410s-w-antenna-868 ao-a868-g410s-w-antenna-868-2

3.66 EUR

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

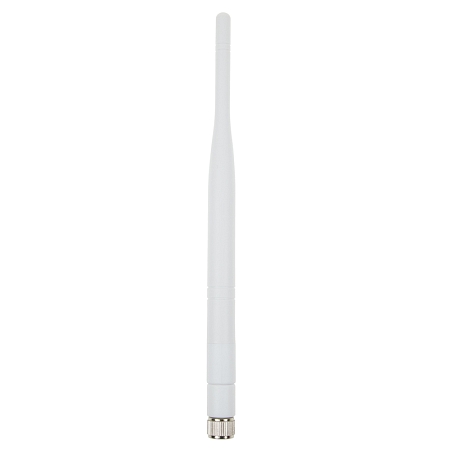

Omnidirectional antenna 868 MHz, White

Omnidirectional articulated antenna with SMA connector is designed to receive ISM / ZigBee / LoRa / SigFox signal. The antenna operates in the 868 MHz band and is ideal for a wide range of cellular devices and IoT services.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS impendance: 50 Ohm
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 195 x 12.9 mm / 171 x 37.5 x 12.9 mm
Directivity: Omni-directional Width zone: 8 MHz
Technology : ISM / ZigBee / LoRa / SigFox Weight: 25.14 g
VSWR: <2.0:1 GAIN: 3 dBi
TYPE OF ATTACHMENT: Screw
