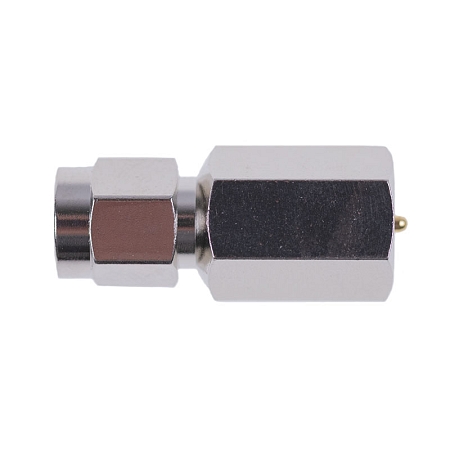

Connector adaptor FME (m) to SMA (m)
Connector adaptor is used to connect devices that have different types of connectors. This adaptor consists of connectors FME (m) and SMA (m).
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Connector specifications FME:
FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Temperature range is -65 °C to +155 °C. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.
