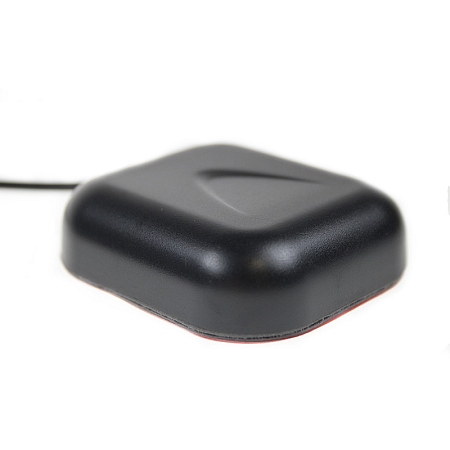

Antenna GPS/GLONASS Adhesive 057, MCX(m) straight, RG174/3m

Product code: AP-AGNSS-A057M /Manufacturer: SECTRON

New item
ap-agns-a057m-gps-antena-2 ap-agns-a057m-gps-antena-3 ap-agns-a057m-gps-antena-4 ap-agnss-a057s-1

6.49 EUR

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional antenna for GPS and GLONASS

Omnidirectional adhesive antenna for GPS and GLONASS. The antenna operates in two bands, 1545.72 and 1602 MHz. The antenna reaches up to 26-48 dBi gain when combined with an amplifier. The antenna is suitable for cars and the others vehicles. The antenna is supplied with 3 m cable RG174/U with MCX(m) connector. Comes with 3M double-sided tape for easy assembly.

Connector specifications MCX:

These are coaxial connectors with latch mechanism. Compatible with SMB connectors, but they are also 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Cable specifications RG174:

The cable labeled RG174 is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.




Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: MCX(m) Maximum input power: 10 W max.
Input voltage: 2.2 V - 5 V DC Polarization: R.H.C.P.
Execution: External Operational temperature: -40 °C - +85 °C
Dimensions: 52.5 x 59.2 x 15 mm Directivity: Omni-directional
Width zone: 5 MHz Technology : GPS / GLONASS
Weight: 74.15 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 26 dBi / 48 dBi
TYPE OF ATTACHMENT: Adhesive

Documents for download

AP-AGNSS-A057M4.pdf (881.739 kB)
