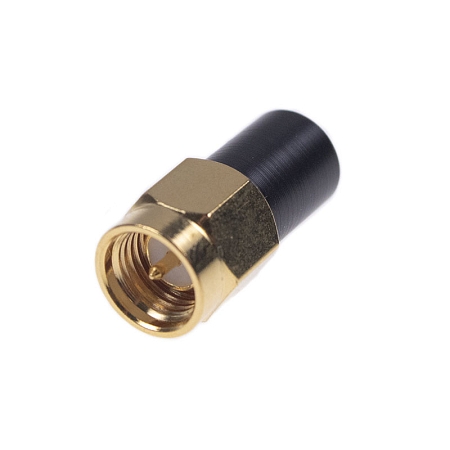

Antenna GSM Connector Mount MINI SMVS, 180°, 2 dBi, SMA(m)

Product code: AO-AGSM-SMVS1 /Manufacturer: SECTRON

ao-agsm-smvs1-gsm-antena-01 ao-agsm-smvs1-gsm-antena-03 ao-agsm-smvs1-gsm-antena-02

2.65 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Omnidirectional internal GSM antenna

Omnidirectional internal antenna with connector SMA (m) for GSM technologies. Antenna length 17.8. mm operates in the 900 MHz band. It is suited for industrial modems and routers.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.


Certifikace: ISO 9001 / ISO 14001 impendance: 50 Ohm
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -30 °C - +90 °C Dimensions: 17.8 x 9.1 mm
Directivity: Omni-directional Technology : GSM
Weight: 2.78 g VSWR: <1.3:1
Radiation angle: H 360° V 30° GAIN: 2 dBi
TYPE OF ATTACHMENT: Connector mount
