Antenna GSM/GPS Mounting CAP, SMA/SMA, RG174/5m

Product code: AO-AKOM-CAPSS /Manufacturer: SECTRON

ao-akom-capsrpb ao-akom-capsrpb-4 ao-akom-capsrpb-bottom

22.65 EUR

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

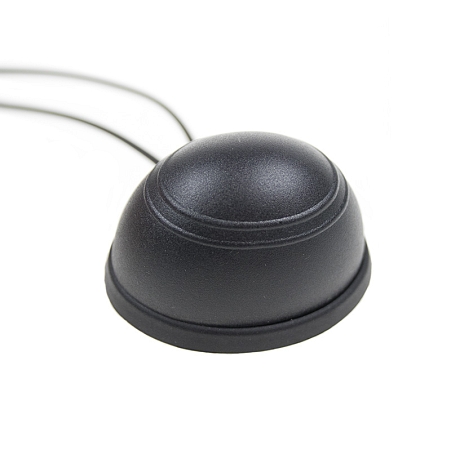

Omnidirectional GSM/GPS antenna

Omnidirectional combined antenna for technologies GSM/GPS. The antenna operates in bands 800/900/1575.42/1800/1900 MHz, reaches up to 27 dBi gain when combined with an amplifier in bands GPS and is supplied with two 5m cables with two SMA(m) connectors. The antenna is suitable for cars.

More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear / R.H.C.P. Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 30 x 53 x 38 mm
Directivity: Omni-directional Technology : GSM / GPS
Weight: 172.17 g VSWR: <2.0:1
Radiation angle: H 300° V 75° GAIN: 0.27 dBi
TYPE OF ATTACHMENT: Mounting
