Product code: AO-AGSM-MG2F
Producer: SECTRON

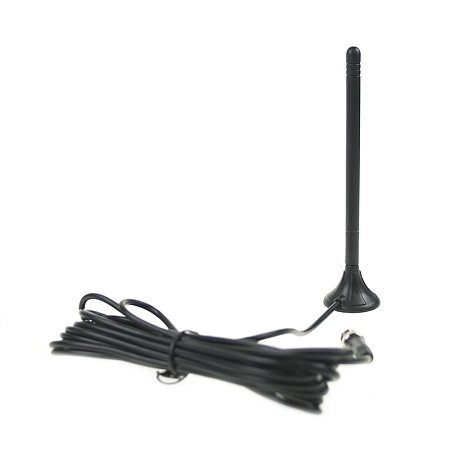

Antenna GSM Magnet Mount 25, 3 dBi, FME(f), RG174/3m

Product code: AO-AGSM-MG2F
Producer: SECTRON

Antenna GSM Magnet Mount 25, 3 dBi, FME(f), RG174/3m

Omnidirectional internal antenna for GSM technologies and operates in bands 900/1800 MHz. It is suited for modems/routers.

5.87incl. VAT (21%) / pc

excl. VAT 4.85 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional antenna for* GSM technologies*

Omnidirectional magnetic antenna for GSM technologies and operates in bands 900/1800 MHz.The antenna is suited for modems/routers. The antenna base can have a magnetic base. It is supplied with 3 m cable with FME (f) connector.

Connector FME specifications :

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

Cable RG174 / U specifications:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector FME(f) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +90  °C Dimensions 116.7 x 26.7  mm
Directivity Omnidirectional Technology GSM
Weight 45  g Gain 2.5  dBi
VSWR <2.5:1 Radiation angle H-360 V-30
Type of attachment Magnetic
