Product code: AO-AGSM-CAPSRPS
Producer: SECTRON

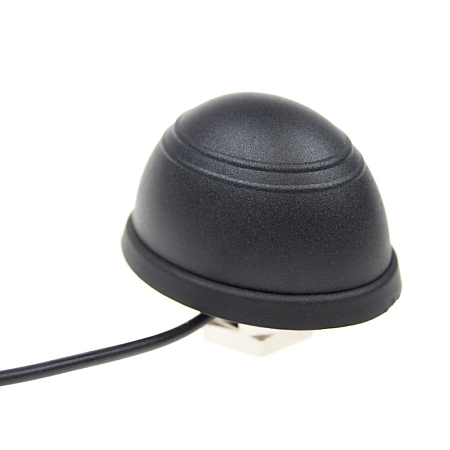

Antenna GSM Screw Mount R32, SMA-RP, RG174U/5m

Product code: AO-AGSM-CAPSRPS
Producer: SECTRON

Antenna GSM Screw Mount R32, SMA-RP, RG174U/5m

Omnidirectional antenna for GSM signal reception. The antenna operates in bands 900/1800/2100 MHz.

19.55incl. VAT (21%) / pc

excl. VAT 16.16 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional GSM antenna

Omnidirectional antenna for GSM signal reception. The antenna operates in bands 900/1800/2100 MHz. Used in vehicles to connect to cellular modems and routers or signal repeaters. The antenna is supplied with 5m cable RG174/U with SMA-RP connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector RP-SMA(f) Maximum input power 10  W
Power voltage 2.2 – 5 V DC Polarization Linear
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 53 x 49 x 38  mm Directivity Omnidirectional
Technology GSM Weight 111.74  g
Gain 0  dBi VSWR <1.6:1
Type of attachment Screw Mount Certification RoHS , ISO 9001 , ISO 14001
Material ABS
