Product code: AO-AGSM-36F
Producer: SECTRON

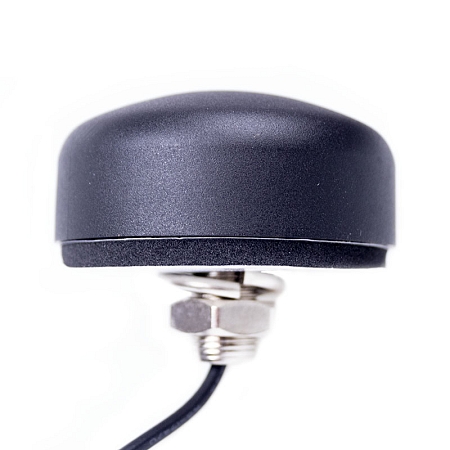

Antenna GSM Screw Mount R36, FME(f), RG174/3m, IP67

Product code: AO-AGSM-36F
Producer: SECTRON

Antenna GSM Screw Mount R36, FME(f), RG174/3m, IP67

Omnidirectional antenna for GSM technologies. The antenna operates in bands 800/900/1700/1800/1900/2100 MHz.

20.41incl. VAT (21%) / pc

excl. VAT 16.87 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional GSM antenna

Omnidirectional antenna for* GSM technologies*. The antenna operates in bands 800/900/1700/1800/1900/2100 MHz.The antenna allows connection to routers, modems, data modules or alarms. RG174/U cables with a length of 3 m is attached to the antenna, which is terminated with FME (f) connector.

Connector specifications FME:

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Temperature range is -65 °C to +155 °C. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

Cable specifications RG174/U:

The cable labeled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C. It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector FME(f) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +90  °C Dimensions 54.4 x 43.3  mm
Directivity Omnidirectional Technology GSM
Weight 107.9  g Gain 0  dBi
VSWR <2.0:1 Radiation angle H 360° V 30°
Type of attachment Screw Mount

20.41incl. VAT (21%) / pc

excl. VAT 16.87 € / pc
