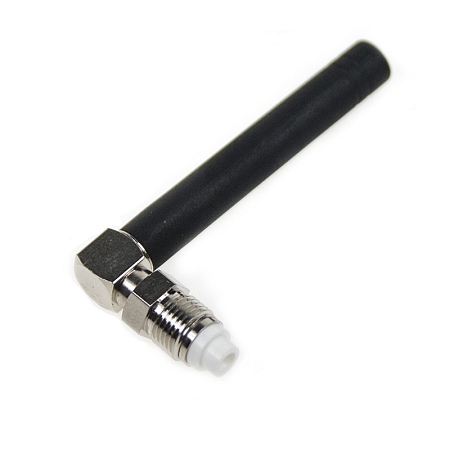

Antenna GSM Stick 90°, Dual-band, 0dBi, FME(f)90°

Product code: AO-AGSM-FMER /Manufacturer: SECTRON

Sale
ao-agsm-fmer-gsm-antenna-1 ao-agsm-fmer-gsm-antenna-2 ao-agsm-fmer-gsm-antenna-3

0.39 EUR

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GSM  antenna

Omnidirectional antenna with connector FME for GSM technologies. The antenna operates in bands 900/1800/1900 MHz. It is suited for modems/routers.

Connector specifications FME:

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: N/A
Connector: FME(f) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -30 °C - +90 °C Dimensions: 10 x 53 x 24.1 mm
Directivity: Omni-directional Technology : GSM
Weight: 7.47 g VSWR: <1.8:1
Radiation angle: H-360°. V-30° GAIN: 0 dBi
TYPE OF ATTACHMENT: Screw

Documents for download

AO-AGSM-FMER2.pdf (790.674 kB)
