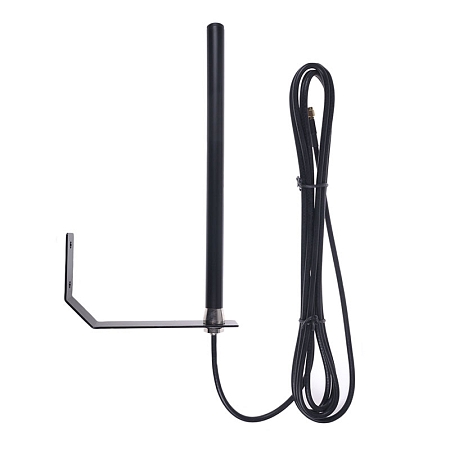

Omnidirectional ISM antenna OMNI OM60
The omnidirectional outdoor ISM antenna OMNI OM60 is suitable for signal reception and transmission in ISM technologies. The antenna operates in the 868/915 MHz bands and is ideal for use in M2M applications and IoT devices, IoT systems, and mobile communications. The antenna comes with a 3-meter MR-195 cable terminated with an SMA (male) connector.
Thanks to its IP67 rating, the ISM antenna offers excellent resistance to weather conditions and is suitable for outdoor mast mounting
The robust design allows for easy installation on a mast using the included metal bracket, ensuring stable attachment even in demanding environments.
Cable specifications .195:
The .195 coaxial cable is compatible with connectors applicable to cables with 4.95 mm outer diameter. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω. The most common cables of this type have a temperature range of -40 °C to + 85 °C. The shortening factor is set at 0.79. The .195 cable is used in metrology, wireless communications, the automotive industry and also for VHF and UHF applications. It is also often used for creating cable adaptors with plug connectors such as BNC/N/SMA/TNC. There are also specially modified types of .195 cables for outdoor use, which are UV resistant and for use in extreme conditions. There are made of different materials, different qualities.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties
Technical parameters can be found in the attached datasheet.
