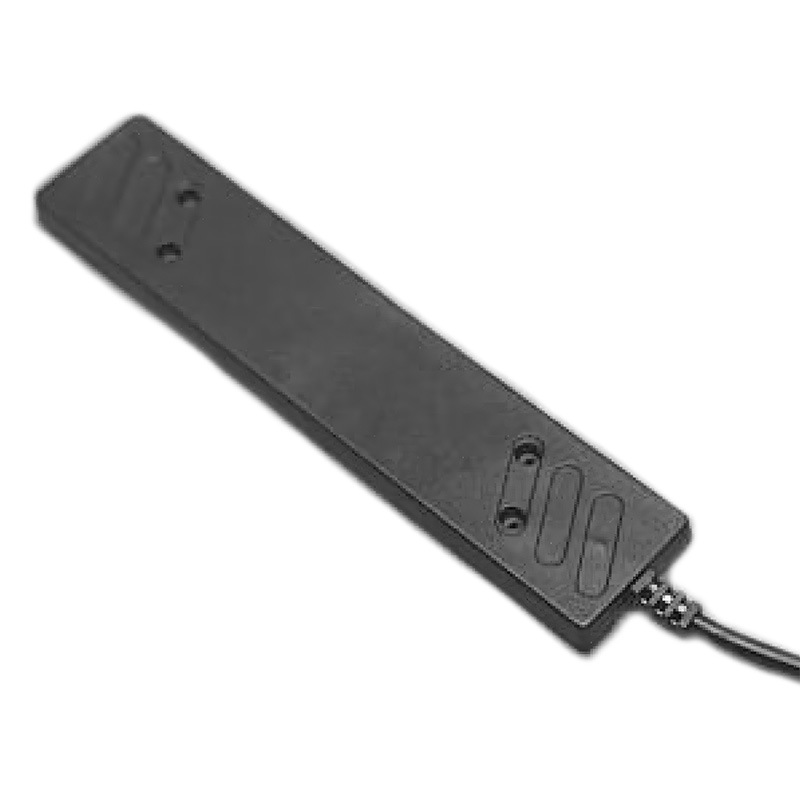

Omnidirectional adhesive LTE/CDMA antenna
The omnidirectional LTE antenna is designed for receiving signals in LTE and CDMA technologies. The antenna operates on 451–468 MHz, 617–960 MHz, 1427–1518 MHz, and 1710–2690 MHz frequencies.
This LTE antenna is primarily designed to improve signal quality and connection reliability to the mobile network in areas where the signal is weak or unstable, such as in cars, caravans, or buildings with limited signal coverage. It enables the connection of devices such as cellular modems or routers.
Easy mounting is ensured by double-sided 3M adhesive tape for attachment to glass. The antenna is supplied with a 3-meter RG174/U coaxial cable terminated with an SMA(m) connector, enabling easy connection to most devices.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications RG174/U:
The cable labeled RG174/U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc.
Technical parameters can be found in the attached datasheet.
